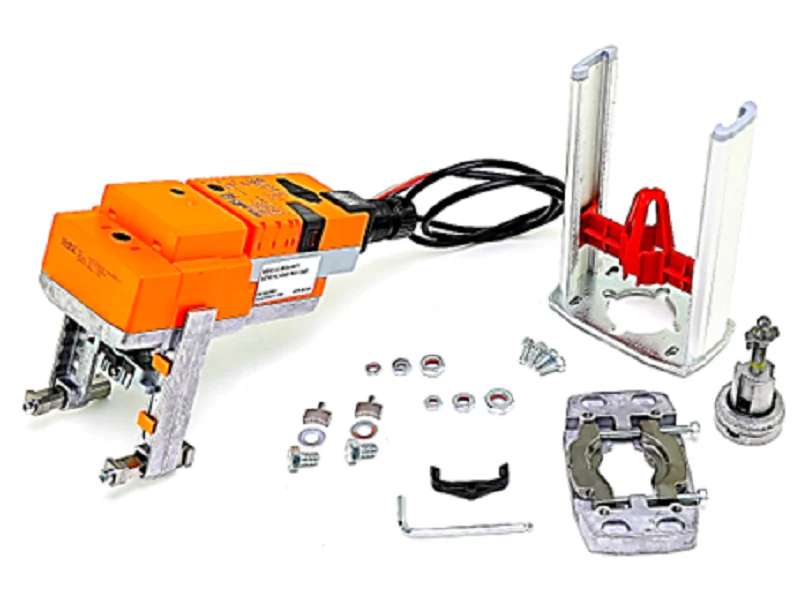

Belimo UGVL+LVX24-MFT Actuator
The Belimo UGVL+LVX24-MFT Actuator provides precise control for globe valves in high-demand HVAC applications. This assembly utilizes the LVX24-MFT Multi-Function Technology, allowing contractors to configure control signals recursively for 2 to 10 VDC, 4 to 20 mA, or PWM points. With a rated 112 lbf (500 N) linear force, the UGVL linkage system ensures reliable seating against high close-off pressures. Operating on 24V AC/DC, this non-spring return actuator features a brushless DC motor for consistent torque and speed control regardless of load. The integrated MFT technology enables field-calibration of stroke and feedback, ensuring the globe valve actuator matches the specific flow characteristics of the mechanical system. Designed for longevity in commercial environments, it simplifies the HVAC valve automation process by providing a direct-mount solution that reduces installation time and mechanical hysteresis in hydronic circuits.
Key Benefits for Technicians:
- Field Programmable: MFT technology allows for custom parameter settings including control signal, feedback, and running time via the Belimo PC Tool or ZTH US.
- Direct-Mount Integration: The UGVL linkage is engineered for seamless mechanical coupling to 1/2" to 2" globe valves without specialized tools.
- Overload Protection: Electronic stall detection prevents motor burnout, automatically stopping the drive once a physical end-stop is reached.
- Manual Override: Features a manual crank for system setup and emergency positioning during power loss.
- Position Feedback: Provides a 2 to 10 VDC feedback signal for precise logging and remote monitoring of valve position.
Common Technical Questions:
How do I calibrate the LVX24-MFT for a specific valve stroke?
The actuator features an automatic stroke adaptation function. Once energized, the unit can be triggered to perform a travel test, mapping the electrical signal to the mechanical limits of the valve.
Can this actuator handle steam applications?
The UGVL linkage is compatible with specific steam valve bodies, provided the media temperature does not exceed the actuator's thermal rating. Always verify the maximum fluid temperature of the valve body.
What happens if the control signal is lost?
Through MFT programming, you can define the fail-position (stay in place, fully open, or fully closed) upon signal loss to maintain system safety.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
