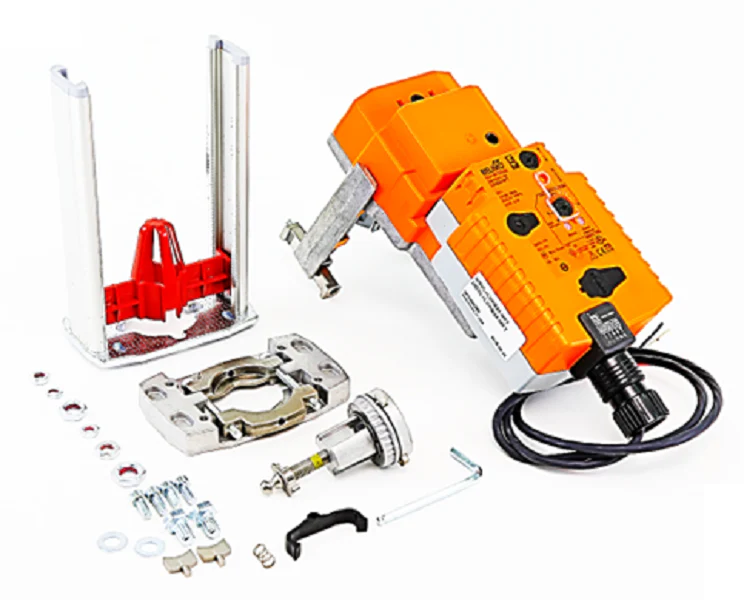

Belimo UGVL+LVKB24-MFT Actuator
The Belimo UGVL+LVKB24-MFT Actuator is a robust linear electronic fail-safe actuator designed for precise flow control in HVAC globe valve applications. Engineered for a force of 115 lbf (500 N), this unit operates on 24V AC/DC and utilizes Multi-Function Technology (MFT), allowing for field-customizable parameters including control input, position feedback, and running time. The built-in electronic fail-safe mechanism employs SuperCap technology to drive the valve to a predetermined safety position during power loss, eliminating the mechanical wear associated with traditional spring-return models. This non-spring return actuator is compatible with 2-way and 3-way globe valves, providing reliable modulating control for high-performance hydronic systems. Its IP54 rated housing and manual override capability ensure durable field operation and simplified commissioning for building automation systems (BAS) requiring advanced proportional control and diagnostic feedback.
- Multi-Function Technology: Field-programmable MFT circuitry allows for easy adjustment of control signals (2-10VDC, 4-20mA) and feedback signals to match specific site requirements.
- Superior Fail-Safe Reliability: Integrated capacitive storage ensures a consistent safety position upon power interruption without the bulk of mechanical springs.
- High Torque/Force Output: Delivers a consistent 115 lbf linear force, capable of handling high differential pressures in commercial HVAC piping.
- Diagnostic Interface: Compatible with Belimo ZTH US tools for rapid troubleshooting and performance verification.
Common Questions
Can the fail-safe position be changed in the field?
Yes, the Belimo LVKB24-MFT allows for field selection of the fail-safe direction (normally open or normally closed) using the internal dip switches or an MFT programming tool.
Does this actuator support 4-20mA control signals?
Yes, the UGVL+LVKB24-MFT is designed for modulating control and can be configured to accept 4-20mA or 2-10VDC inputs via the MFT interface.
Is this unit a direct replacement for older Belimo globe valve actuators?
This assembly is compatible with standard UGVL linkage systems. Verify your specific valve body stroke and bonnet dimensions to ensure proper actuator-valve coupling.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $770.66
-65%$770.66
$269.73Belimo UGVL+LVKB24-MFT Actuator
The Belimo UGVL+LVKB24-MFT Actuator is a robust linear electronic fail-safe actuator designed for precise flow control in HVAC globe valve applications. Engineered for a force of 115 lbf (500 N), this unit operates on 24V AC/DC and utilizes Multi-Function Technology (MFT), allowing for field-customizable parameters including control input, position feedback, and running time. The built-in electronic fail-safe mechanism employs SuperCap technology to drive the valve to a predetermined safety position during power loss, eliminating the mechanical wear associated with traditional spring-return models. This non-spring return actuator is compatible with 2-way and 3-way globe valves, providing reliable modulating control for high-performance hydronic systems. Its IP54 rated housing and manual override capability ensure durable field operation and simplified commissioning for building automation systems (BAS) requiring advanced proportional control and diagnostic feedback.
- Multi-Function Technology: Field-programmable MFT circuitry allows for easy adjustment of control signals (2-10VDC, 4-20mA) and feedback signals to match specific site requirements.
- Superior Fail-Safe Reliability: Integrated capacitive storage ensures a consistent safety position upon power interruption without the bulk of mechanical springs.
- High Torque/Force Output: Delivers a consistent 115 lbf linear force, capable of handling high differential pressures in commercial HVAC piping.
- Diagnostic Interface: Compatible with Belimo ZTH US tools for rapid troubleshooting and performance verification.
Common Questions
Can the fail-safe position be changed in the field?
Yes, the Belimo LVKB24-MFT allows for field selection of the fail-safe direction (normally open or normally closed) using the internal dip switches or an MFT programming tool.
Does this actuator support 4-20mA control signals?
Yes, the UGVL+LVKB24-MFT is designed for modulating control and can be configured to accept 4-20mA or 2-10VDC inputs via the MFT interface.
Is this unit a direct replacement for older Belimo globe valve actuators?
This assembly is compatible with standard UGVL linkage systems. Verify your specific valve body stroke and bonnet dimensions to ensure proper actuator-valve coupling.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
