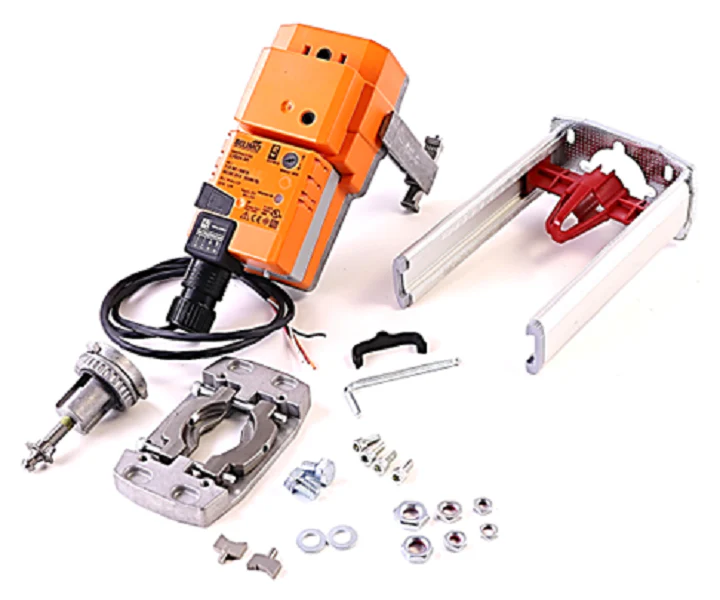

Belimo UGVL+LVB24-SR Actuator
The Belimo UGVL+LVB24-SR is a high-torque globe valve actuator assembly designed for precise control in HVAC hydronic systems. Operating on a 24V AC/DC power supply, this non-spring return unit provides a 2-10 VDC proportional control signal for modulating applications. With a robust 112 lbf (500 N) linear force, the UGVL linkage ensures reliable operation of globe valves with up to 0.75-inch stroke. This field-mountable solution features a brush DC motor protected against overloading, eliminating the need for limit switches. For contractors, the manual override and automatic stroke adaptation simplify actuator calibration and commissioning. The proportional control signal allows for seamless integration with BAS/BMS controllers, providing accurate valve positioning for optimal thermal performance. This assembly is standard for 2-way and 3-way valve bodies requiring consistent stem force and long-term mechanical reliability in demanding commercial environments.
Key Benefits
- 112 lb force output provides sufficient torque for high close-off pressure requirements in commercial globe valves.
- 2-10 VDC feedback allows for real-time monitoring of valve position by the building automation system.
- Automatic stroke adaptation ensures the actuator recognizes the valve's physical limits for precise control.
- Brushless DC motor technology prevents motor burnout and increases the operational life of the assembly.
- UGVL Linkage allows for straightforward field installation on various globe valve bodies without complex modifications.
Common Questions
Is the Belimo LVB24-SR fail-safe?
No, this is a non-spring return (NSR) actuator. It will stay in its last position upon loss of power. For fail-safe requirements, an electronic or spring-return model should be specified.
Can I manually adjust the valve position?
Yes, the unit features a manual override to position the valve during startup or in the event of a power loss, provided the gear train is disengaged.
What control signals are compatible with this actuator?
This model accepts a 2-10 VDC modulating signal and can also be configured for 4-20 mA with an external resistor, making it versatile for most controller outputs.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
