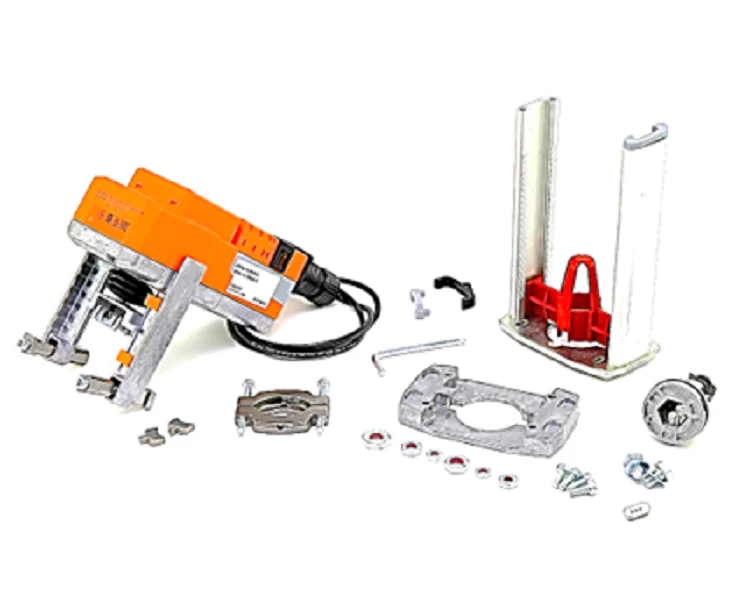

Belimo UGVL+LVB24-3 Actuator
The Belimo UGVL+LVB24-3 is a high-performance linear actuator and retrofit linkage assembly designed for precision control in professional HVACR systems. Engineering to provide a 112 lbf (500 N) force, this non-spring return (NSR) actuator is ideal for on/off or floating point control of globe valves. It operates on a standard 24V AC/DC power supply, drawing only 1W during operation for maximum energy efficiency. The UGVL universal globe valve linkage allows for seamless integration with 1/2" to 2" valves from multiple manufacturers, making it a versatile choice for contractors performing field retrofits. With a specialized 90-second run time and a stroke range of 0.6" (15 mm) to 3/4" (20 mm), this assembly ensures stable, reliable positioning for chilled water, hot water, or steam applications. The NEMA 2 rated enclosure and 115 lbf seating force provide the ruggedness required for demanding commercial mechanical environments.
- Universal Compatibility: The UGVL linkage fits most globe valve bodies from 1/2" to 2", simplifying inventory for field technicians.
- Efficient Performance: Consumes only 0.5W in holding mode, reducing long-term operational costs in large-scale HVAC control systems.
- Contractor Friendly: Features a manual override with a 4mm hex crank and a selectable direction of motion switch for simplified commissioning.
- High Force Output: Delivers 112 lbf linear force to ensure positive close-off against high differential pressures.
Common Questions
Is the LVB24-3 a fail-safe actuator?
No, this model is a non-spring return (NSR) actuator. It will maintain its last position upon loss of power.
Can I use this on a 3-way valve?
Yes, the UGVL universal linkage is designed to adapt to both 2-way and 3-way globe valves with bonnets up to 1.7" in diameter.
What control signal does this unit accept?
This unit is configured for on/off or floating point (3-point) control, typically used with 24V thermostats or DDC controllers.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
