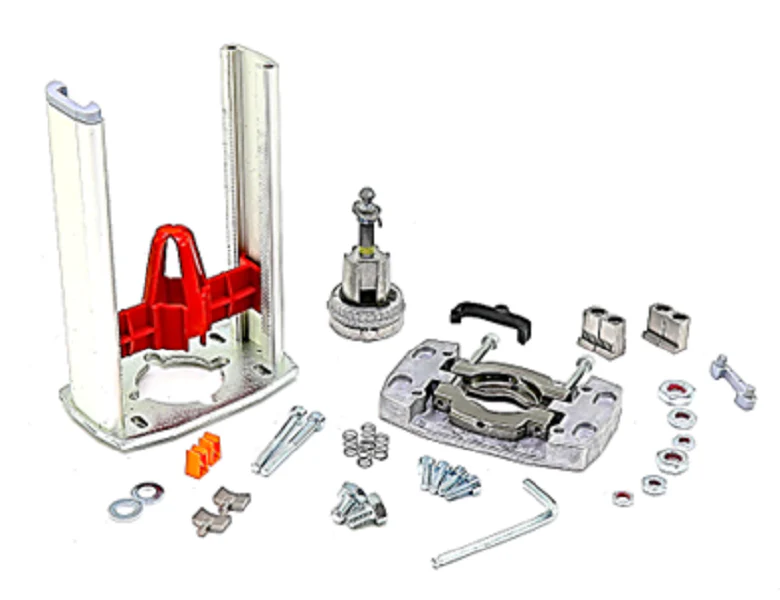

Belimo UGVL Linkage Only
The Belimo UGVL Linkage is a heavy-duty globe valve linkage assembly specifically engineered for retrofitting UGVL Series valves to accept electronic actuators. Designed for seamless HVAC valve automation, this linkage provides the mechanical translation required to convert rotary actuator motion into the linear force needed for precise stem positioning. Constructed with high-grade materials to withstand consistent cycling in hydronic systems, the UGVL ensures stable control in chilled water, hot water, or steam applications. For technicians performing field replacements or upgrades, this linkage eliminates the need for full valve extraction, reducing downtime and labor costs during actuator-to-valve integration. It is compatible with a wide range of Belimo non-spring return and spring return actuators, facilitating high-torque performance and reliable shut-off. By utilizing this commercial valve linkage kit, contractors can ensure exact stroke alignment and long-term operational stability in demanding thermal environments.
Key Benefits
- Precision-engineered for UGVL valve bodies, ensuring exact stem alignment and stroke control.
- Rugged construction provides high mechanical advantage for consistent linear valve actuation.
- Simplifies field retrofits by allowing existing valves to be automated without system drainage.
- Corrosion-resistant components extend the service life of the linkage in high-humidity mechanical rooms.
- Versatile bolt-pattern compatibility supports multiple Belimo globe valve actuators.
Common Questions
How do I ensure the stroke length is correctly set for the UGVL linkage?
Proper calibration involves mounting the actuator and performing a stroke adaptation to sync the linkage travel with the valve’s full open and closed positions.
Can this linkage be used with third-party actuators?
The UGVL is specifically designed for the Belimo actuator hole patterns; using non-Belimo hardware may require custom bracketry and is generally not recommended for precise control.
What maintenance is required for globe valve linkages?
Regularly inspect for stem packing leaks that could cause mineral buildup on the linkage, and ensure all mounting fasteners remain torqued to spec.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
