Belimo UGSL1200 Retrofit Kit

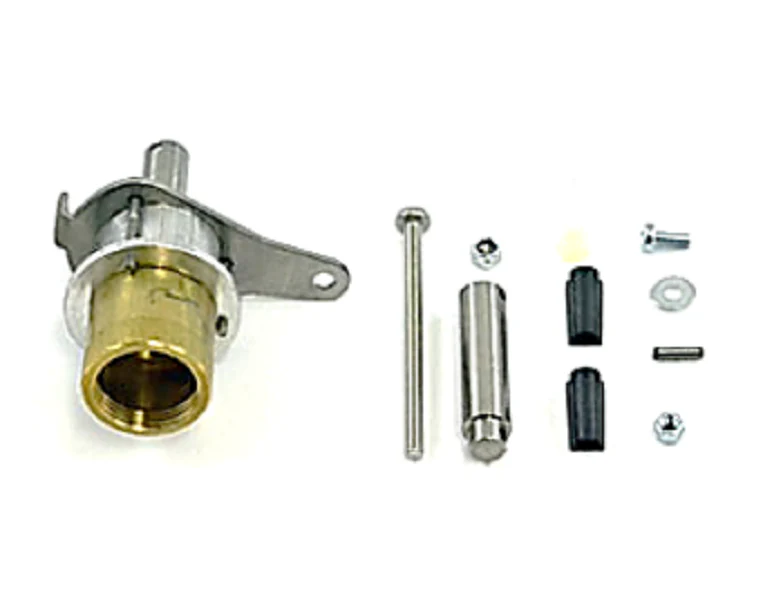

The Belimo UGSL1200 Retrofit Kit is a heavy-duty linkage solution engineered specifically for Siemens 599 MT/MZ series globe valves. Designed for professional HVAC valve retrofitting, this kit enables the seamless integration of high-performance Belimo CM and TF series actuators onto existing Siemens Powermite 1/2" to 1-1/4" short-stroke valves. By converting rotary actuator movement into a precise 6 mm linear stroke with 90° to 95° rotation, the UGSL1200 provides consistent force—delivering a downward force of up to 67 lbs to ensure reliable close-off in high-demand hydronic systems. This valve linkage kit is compatible with both 2-way and 3-way configurations and supports normally open or normally closed operation. Construction features durable aluminum, brass, and stainless steel components to withstand ambient temperatures from -22°F to 122°F, maintaining system efficiency and minimizing downtime during field upgrades. For technicians, the integrated manual override on CM actuators and the housing's stroke indication slot simplify commissioning and troubleshooting for terminal unit control applications.
Key Benefits- Universal Compatibility: Specifically designed to adapt Belimo TF and CM actuators to Siemens 599 MT/MZ short-stroke globe valves (1/2" to 1-1/4").
- High Force Output: Provides up to 67 lbs of downward force to ensure positive seat closure and prevent leakage in chilled water and steam systems.
- Simplified Installation: Features a unique coupler design and includes all necessary hardware for rapid field actuator replacement without removing the valve body.
- Precise Control: Converts standard rotary movement into a consistent 6 mm linear stroke, optimized for proportional and floating control performance.
- Rugged Durability: Engineered with premium metals (aluminum, brass, stainless steel) for long-term service life in commercial mechanical rooms.
Which actuators are compatible with the UGSL1200 kit?
The kit is designed for Belimo CM and TF* series actuators. Specifically, it supports non-fail-safe CMB(X) and spring-return TFB(X) models. For on/off applications, the TFL series is required.
Can this kit be used on 1-1/2" Siemens valves?
The UGSL1200 is rated for 1/2" to 1-1/4" valves. Note that the linkage cannot be used on 1-1/2" normally closed (NC) valves due to stroke and force limitations.
Is manual override supported after installation?
Yes. When paired with a CM series actuator, the UGSL1200 allows for manual override to rotate the linkage up or down for troubleshooting. For TF models, refer to the electronic override procedure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Belimo UGSL1200 Retrofit Kit
The Belimo UGSL1200 Retrofit Kit is a heavy-duty linkage solution engineered specifically for Siemens 599 MT/MZ series globe valves. Designed for professional HVAC valve retrofitting, this kit enables the seamless integration of high-performance Belimo CM and TF series actuators onto existing Siemens Powermite 1/2" to 1-1/4" short-stroke valves. By converting rotary actuator movement into a precise 6 mm linear stroke with 90° to 95° rotation, the UGSL1200 provides consistent force—delivering a downward force of up to 67 lbs to ensure reliable close-off in high-demand hydronic systems. This valve linkage kit is compatible with both 2-way and 3-way configurations and supports normally open or normally closed operation. Construction features durable aluminum, brass, and stainless steel components to withstand ambient temperatures from -22°F to 122°F, maintaining system efficiency and minimizing downtime during field upgrades. For technicians, the integrated manual override on CM actuators and the housing's stroke indication slot simplify commissioning and troubleshooting for terminal unit control applications.
Key Benefits- Universal Compatibility: Specifically designed to adapt Belimo TF and CM actuators to Siemens 599 MT/MZ short-stroke globe valves (1/2" to 1-1/4").
- High Force Output: Provides up to 67 lbs of downward force to ensure positive seat closure and prevent leakage in chilled water and steam systems.
- Simplified Installation: Features a unique coupler design and includes all necessary hardware for rapid field actuator replacement without removing the valve body.
- Precise Control: Converts standard rotary movement into a consistent 6 mm linear stroke, optimized for proportional and floating control performance.
- Rugged Durability: Engineered with premium metals (aluminum, brass, stainless steel) for long-term service life in commercial mechanical rooms.
Which actuators are compatible with the UGSL1200 kit?
The kit is designed for Belimo CM and TF* series actuators. Specifically, it supports non-fail-safe CMB(X) and spring-return TFB(X) models. For on/off applications, the TFL series is required.
Can this kit be used on 1-1/2" Siemens valves?
The UGSL1200 is rated for 1/2" to 1-1/4" valves. Note that the linkage cannot be used on 1-1/2" normally closed (NC) valves due to stroke and force limitations.
Is manual override supported after installation?
Yes. When paired with a CM series actuator, the UGSL1200 allows for manual override to rotate the linkage up or down for troubleshooting. For TF models, refer to the electronic override procedure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
