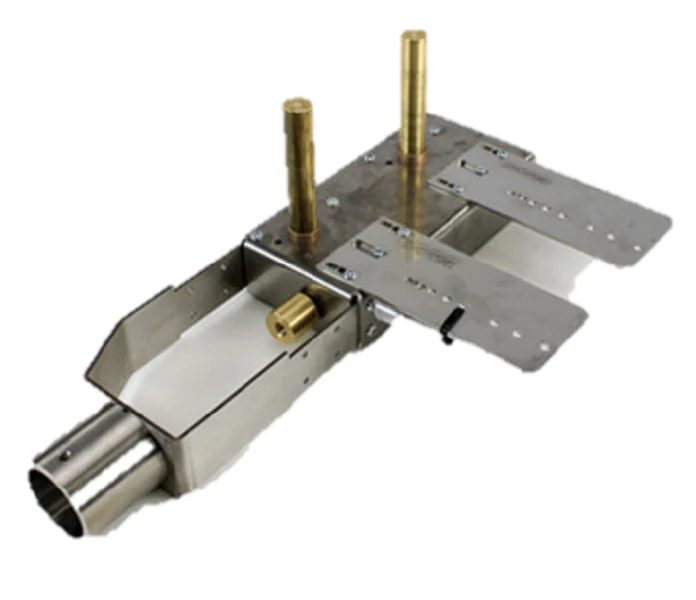

Belimo UGLK1872 Retrofit Kit
The Belimo UGLK1872 Retrofit Kit is a heavy-duty linkage solution engineered specifically for Honeywell V5011 and V5013 globe valves in the 4-inch to 6-inch range. Designed for dual mount actuator configurations, this kit allows technicians to field-mount tandem Belimo rotary actuators—including the AFB, NFB, and GMB series—to existing valve bodies without breaking the line. The UGLK1872 linkage utilizes a robust rack-and-pinion construction to convert rotary motion into the linear stroke required for high-torque HVAC applications. By utilizing this globe valve retrofit kit, contractors can achieve significantly higher close-off pressures while maintaining the internal integrity of the original Honeywell V50 or V3 series valve assembly. The flexible collar design ensures the linkage can be oriented at any angle on the valve bonnet, simplifying installation in tight mechanical rooms where clearance is restricted.
Key Benefits
- Compatibility: Precision-fit for Honeywell 4-inch to 6-inch V50 and V3 series globe valves.
- High Close-Off: Supports dual mount actuators to provide the necessary force for demanding commercial water and steam systems.
- Reduced Downtime: Restore valve performance and control without the labor-intensive process of removing the valve body from the piping.
- Field Flexibility: The rack-and-pinion design works seamlessly with both normally open and normally closed valve configurations.
- Installation Ease: Features a free-spring design and a unique collar that allows for 360-degree rotation on the valve bonnet.
Common Questions
Which actuators are compatible with the UGLK1872?
This kit is designed for use with tandem (dual) Belimo rotary actuators. Suitable models include the AFB(X) series for spring return, GMB(X) for non-spring return, and GKB(X) for electronic fail-safe operations.
Does this kit include the actuators?
No, the Belimo UGLK1872 is the linkage and bracket assembly only. Actuators must be selected and purchased separately based on the required control signal and fail-safe requirements of your specific project.
Can I use this for both 2-way and 3-way valves?
Yes, the universal collar design and adjustable stroke allow this retrofit linkage to be applied to various two-way and three-way Honeywell globe valve bodies.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $560.03
-65%$560.03
$196.01Belimo UGLK1872 Retrofit Kit
