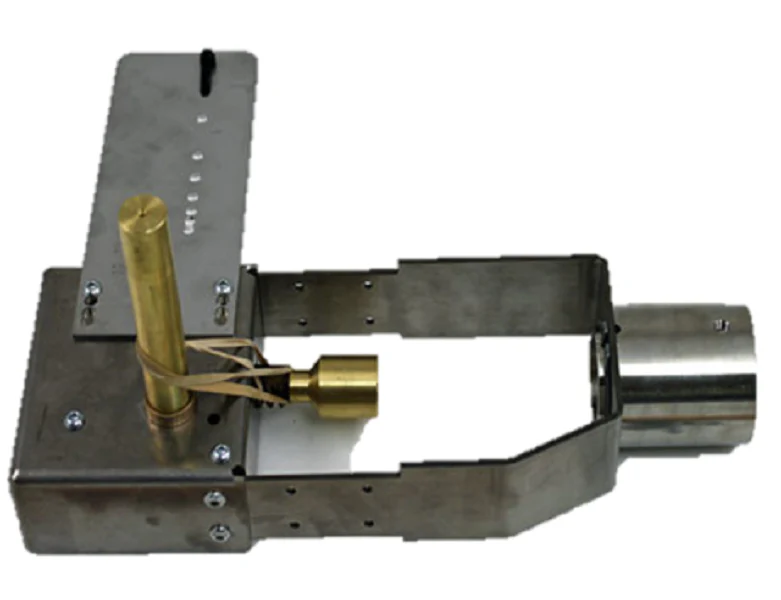

Belimo UGLK1802 Retrofit Kit
The Belimo UGLK1802 Retrofit Kit is a heavy-duty linkage solution designed for seamless integration of high-torque actuators onto existing Honeywell 4-inch to 6-inch V50 and V3 series globe valves. This kit allows technicians to upgrade legacy valve bodies without the labor-intensive process of breaking into the piping system. Engineered with a robust rack and pinion construction, the UGLK1802 delivers a reliable 1-1/2 inch (38mm) stroke, ensuring precise modulation and tight shut-off for 2-way and 3-way flanged valve bodies. The universal collar design and stem adapter allow for 360-degree mounting flexibility, making it an ideal choice for tight mechanical rooms. Compatible with Belimo AM, GM, AF, and GK series actuators, this retrofit linkage restores optimal flow control in steam and chilled water applications. By utilizing the Belimo RetroFIT+ system, contractors can achieve superior close-off pressures and extend the operational life of Honeywell flanged globe valves with minimal downtime.
Key Benefits:
- Field-Mountable Design: Eliminates the need for complete valve replacement and system drainage.
- High Compatibility: Specifically engineered for Honeywell V5011 and V5013 series valves from 4" to 6".
- Durable Construction: Features a stainless steel frame and bronze bearings for long-term reliability in harsh HVAC environments.
- Flexible Actuation: Supports a wide range of fail-safe and non-fail-safe Belimo actuators.
- Precise Control: The 1-1/2 inch stroke (33 teeth gear) provides the necessary travel for full-port valve operation.
Common Questions:
Can the UGLK1802 be used on steam valves?
Yes, this linkage is suitable for steam rated inlets up to 100 psi, provided the selected actuator and valve body meet the specific temperature requirements of the application.
Is the actuator included with the UGLK1802 kit?
No, this is a linkage-only retrofit kit. Actuators such as the GM or GK series must be purchased separately based on your specific torque and control signal (2-10V or 4-20mA) needs.
How do I ensure the correct stroke for my Honeywell valve?
The UGLK1802 is factory-set for a 1-1/2 inch travel, which matches the standard requirements for 4", 5", and 6" Honeywell flanged globe valves. Always verify the gear tooth count stamped on the frame during installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $446.04
-65%$446.04
$156.11Belimo UGLK1802 Retrofit Kit
The Belimo UGLK1802 Retrofit Kit is a heavy-duty linkage solution designed for seamless integration of high-torque actuators onto existing Honeywell 4-inch to 6-inch V50 and V3 series globe valves. This kit allows technicians to upgrade legacy valve bodies without the labor-intensive process of breaking into the piping system. Engineered with a robust rack and pinion construction, the UGLK1802 delivers a reliable 1-1/2 inch (38mm) stroke, ensuring precise modulation and tight shut-off for 2-way and 3-way flanged valve bodies. The universal collar design and stem adapter allow for 360-degree mounting flexibility, making it an ideal choice for tight mechanical rooms. Compatible with Belimo AM, GM, AF, and GK series actuators, this retrofit linkage restores optimal flow control in steam and chilled water applications. By utilizing the Belimo RetroFIT+ system, contractors can achieve superior close-off pressures and extend the operational life of Honeywell flanged globe valves with minimal downtime.
Key Benefits:
- Field-Mountable Design: Eliminates the need for complete valve replacement and system drainage.
- High Compatibility: Specifically engineered for Honeywell V5011 and V5013 series valves from 4" to 6".
- Durable Construction: Features a stainless steel frame and bronze bearings for long-term reliability in harsh HVAC environments.
- Flexible Actuation: Supports a wide range of fail-safe and non-fail-safe Belimo actuators.
- Precise Control: The 1-1/2 inch stroke (33 teeth gear) provides the necessary travel for full-port valve operation.
Common Questions:
Can the UGLK1802 be used on steam valves?
Yes, this linkage is suitable for steam rated inlets up to 100 psi, provided the selected actuator and valve body meet the specific temperature requirements of the application.
Is the actuator included with the UGLK1802 kit?
No, this is a linkage-only retrofit kit. Actuators such as the GM or GK series must be purchased separately based on your specific torque and control signal (2-10V or 4-20mA) needs.
How do I ensure the correct stroke for my Honeywell valve?
The UGLK1802 is factory-set for a 1-1/2 inch travel, which matches the standard requirements for 4", 5", and 6" Honeywell flanged globe valves. Always verify the gear tooth count stamped on the frame during installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
