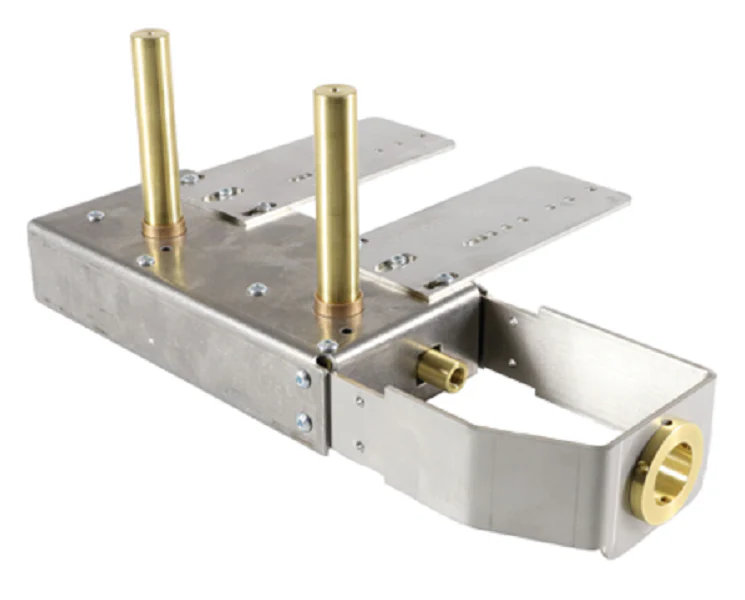

Belimo UGLK1476 Retrofit Kit
The Belimo UGLK1476 Retrofit Kit is a heavy-duty globe valve linkage solution engineered specifically for Johnson Controls (JCI) 3" to 4" VB-3, VB-4, VB-5, and VG2 series valves. Designed for seamless integration with Belimo rotary actuators, this kit enables technicians to upgrade existing valve bodies to modern electronic actuation without disrupting the piping system. The UGLK1476 features a robust cast aluminum linkage and a high-precision rack and pinion construction, ensuring a 1-1/8" stroke (25 teeth) for reliable linear globe valve control. Its universal collar design and centering device simplify field mounting on both two-way and three-way valve bonnets. By utilizing standard HVAC airside actuators, including the GMB, AFB, and GKB series, this kit provides a cost-effective HVAC valve retrofit that increases close-off pressure performance and extends the operational life of legacy JCI globe valves in critical hydronic applications.
Key Benefits- Compatible with Johnson Controls VB-3, VB-4, VB-5, and VG2 series 3-inch and 4-inch valve bodies.
- Features a rack and pinion design that provides 95° rotation for precise downward travel and control.
- Constructed with a cast aluminum linkage and steel components for maximum durability in commercial environments.
- Eliminates the need for valve removal, significantly reducing system downtime during actuator replacement.
- Supports multiple Belimo rotary actuators (GMB, AFB, GKB) for flexible control signals and fail-safe options.
Which JCI valves are compatible with the UGLK1476? This kit is specifically designed for Johnson Controls 3" and 4" globe valves, including the VB-3, VB-4, VB-5, and VG2 series.
Can I use this kit for both normally open and normally closed valves? Yes, the rack and pinion construction allows the UGLK1476 to be configured for both normally open and normally closed operations depending on actuator orientation.
What is the stroke length of this linkage? The UGLK1476 provides a stroke of 1-1/8 inches, optimized for the travel requirements of larger JCI valve bodies.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $566.22
-65%$566.22
$198.18Belimo UGLK1476 Retrofit Kit
The Belimo UGLK1476 Retrofit Kit is a heavy-duty globe valve linkage solution engineered specifically for Johnson Controls (JCI) 3" to 4" VB-3, VB-4, VB-5, and VG2 series valves. Designed for seamless integration with Belimo rotary actuators, this kit enables technicians to upgrade existing valve bodies to modern electronic actuation without disrupting the piping system. The UGLK1476 features a robust cast aluminum linkage and a high-precision rack and pinion construction, ensuring a 1-1/8" stroke (25 teeth) for reliable linear globe valve control. Its universal collar design and centering device simplify field mounting on both two-way and three-way valve bonnets. By utilizing standard HVAC airside actuators, including the GMB, AFB, and GKB series, this kit provides a cost-effective HVAC valve retrofit that increases close-off pressure performance and extends the operational life of legacy JCI globe valves in critical hydronic applications.
Key Benefits- Compatible with Johnson Controls VB-3, VB-4, VB-5, and VG2 series 3-inch and 4-inch valve bodies.
- Features a rack and pinion design that provides 95° rotation for precise downward travel and control.
- Constructed with a cast aluminum linkage and steel components for maximum durability in commercial environments.
- Eliminates the need for valve removal, significantly reducing system downtime during actuator replacement.
- Supports multiple Belimo rotary actuators (GMB, AFB, GKB) for flexible control signals and fail-safe options.
Which JCI valves are compatible with the UGLK1476? This kit is specifically designed for Johnson Controls 3" and 4" globe valves, including the VB-3, VB-4, VB-5, and VG2 series.
Can I use this kit for both normally open and normally closed valves? Yes, the rack and pinion construction allows the UGLK1476 to be configured for both normally open and normally closed operations depending on actuator orientation.
What is the stroke length of this linkage? The UGLK1476 provides a stroke of 1-1/8 inches, optimized for the travel requirements of larger JCI valve bodies.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
