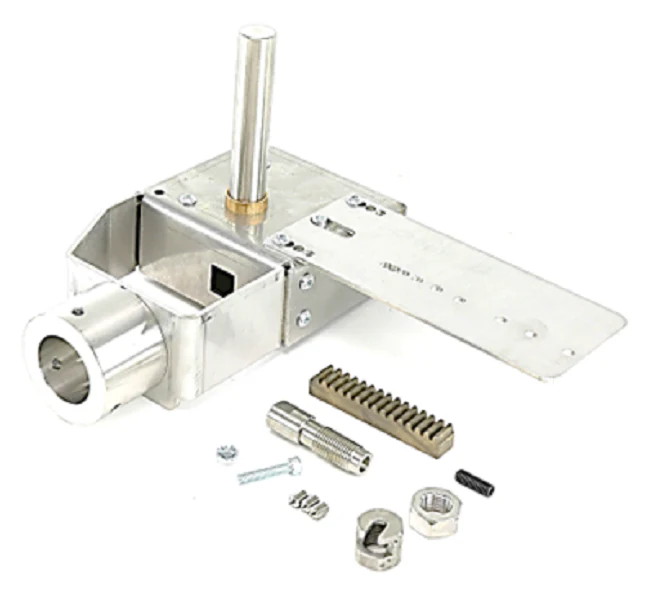

Belimo UGLK1000S Retrofit Kit
The Belimo UGLK1000S Retrofit Kit is a specialized mounting solution designed to facilitate the installation of modern globe valve actuators onto legacy valve bodies. Engineered for heavy-duty applications, this kit is compatible with Belimo EV, RV, and AV series actuators, providing a mechanical interface to automate existing 2-way and 3-way globe valves without requiring complete system drainage or pipe removal. The UGLK1000S features a robust linkage assembly with a 10-inch stroke capacity, ensuring precise stem positioning and reliable close-off pressure. Its heavy-gauge steel bracketry and stainless steel valve stem extension resist corrosion and mechanical fatigue in demanding HVAC mechanical rooms. This hardware set is essential for contractors upgrading pneumatic to electronic actuation or replacing dated electric motor drives, ensuring seamless integration with BAS protocols and optimizing flow control across steam and chilled water circuits.
Key Benefits- Direct-coupled compatibility with high-torque Belimo non-spring return and electronic fail-safe actuators.
- Field-configurable linkages reduce downtime by allowing on-site adaptation to various valve bonnet and stem dimensions.
- Extended service life achieved through industrial-grade materials that withstand high ambient temperatures near steam lines.
- Precision-machined components ensure zero backlash and accurate linear travel for tight proportional control.
- Simplified installation process eliminates the need for specialized machining or custom fabrication during retrofit projects.
Which valve bodies are compatible with the UGLK1000S?
The UGLK1000S is designed to fit a wide range of globe valves from manufacturers like Johnson Controls, Honeywell, and Siemens; however, specific valve neck and stem diameters must be verified using the Belimo Retrofit Tool.
Does this kit include the actuator?
No, the UGLK1000S is a linkage and mounting hardware kit only. The actuator must be selected separately based on the required force (lbs) and control signal (On/Off, Floating, or Modulating).
Can this be used for both steam and water applications?
Yes, provided the selected actuator and the existing valve body are rated for the medium's temperature and pressure. The linkage itself is built to handle the thermal demands of low to medium pressure steam.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
