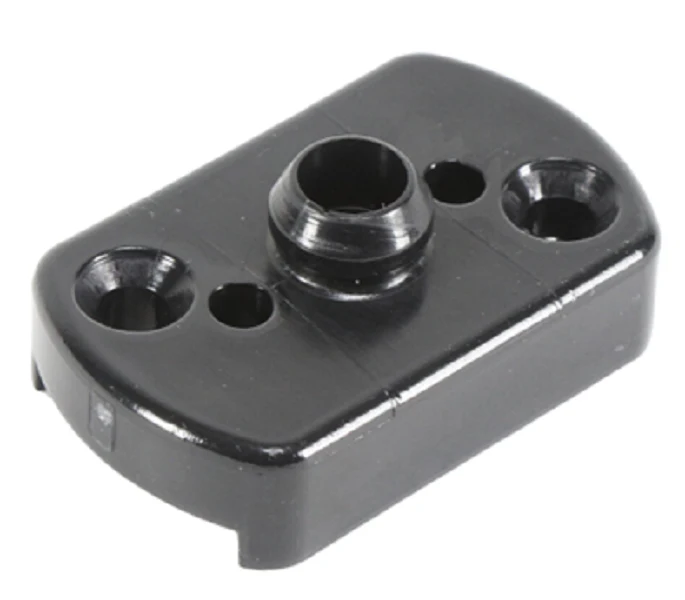

Belimo UBLK1000 Linkage Kit
Optimizing hydronic systems requires reliable integration, and the Belimo UBLK1000 Linkage Kit is the professional standard for retrofits. This valve bracket is specifically engineered to interface Belimo CQ and CQK series actuators with Taco Zone Sentry zone valves. Designed for high-duty cycle performance, the UBLK1000 allows for a seamless transition from legacy or failed actuators to precision electronic fail-safe technology without breaking the hydronic seal. By utilizing this retrofit linkage, technicians can avoid the time-consuming process of draining the system, significantly reducing labor costs and system downtime.
The kit features a high-grade stainless steel coupling and a durable Nylon 66 collar, ensuring structural integrity even in demanding HVACR environments. Its compact design facilitates installation in tight mechanical closets or joist spaces where clearance is limited. Whether you are implementing on/off control or modulating capabilities, this linkage provides the mechanical advantage and accuracy required for modern DDC systems. For contractors managing large-scale residential or light commercial hydronic projects, the Belimo UBLK1000 ensures that automated control of fluid flow remains both efficient and consistent across the entire heating loop.
Key Benefits- Precision Compatibility: Specifically designed to bridge Belimo CQ actuators with Taco Zone Sentry bodies for a perfect mechanical fit.
- Zero-Leak Retrofit: Eliminates the need to pipe in new valves, preserving system pressure and preventing fluid loss during the actuator upgrade.
- Industrial-Grade Materials: Constructed with 304 stainless steel and reinforced polymers to withstand continuous thermal cycling in heating and cooling applications.
- Flexible Orientation: The unique coupling design allows for 360-degree mounting relative to the valve cap, adapting to any pipe configuration.
Is the Belimo UBLK1000 compatible with older Taco 570 series valves?
No, this specific kit is optimized for the Taco Zone Sentry series. For 570 series or other legacy Taco models, a different retrofit solution may be required to match the stem height and stroke requirements.
Does this kit include the actuator for the Taco valve?
The UBLK1000 is the hardware linkage only. The CQB or CQKB series actuator must be purchased separately based on your specific control signal (2-24V, Proportional, or On/Off) and fail-safe requirements.
Can I use this linkage for both 2-way and 3-way valve configurations?
Yes, the linkage kit is suitable for both 2-way and 3-way Taco Sentry valves, as the mechanical stroke and mounting pattern remain consistent across these body styles.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $72.79
-65%$72.79
$25.48Belimo UBLK1000 Linkage Kit
