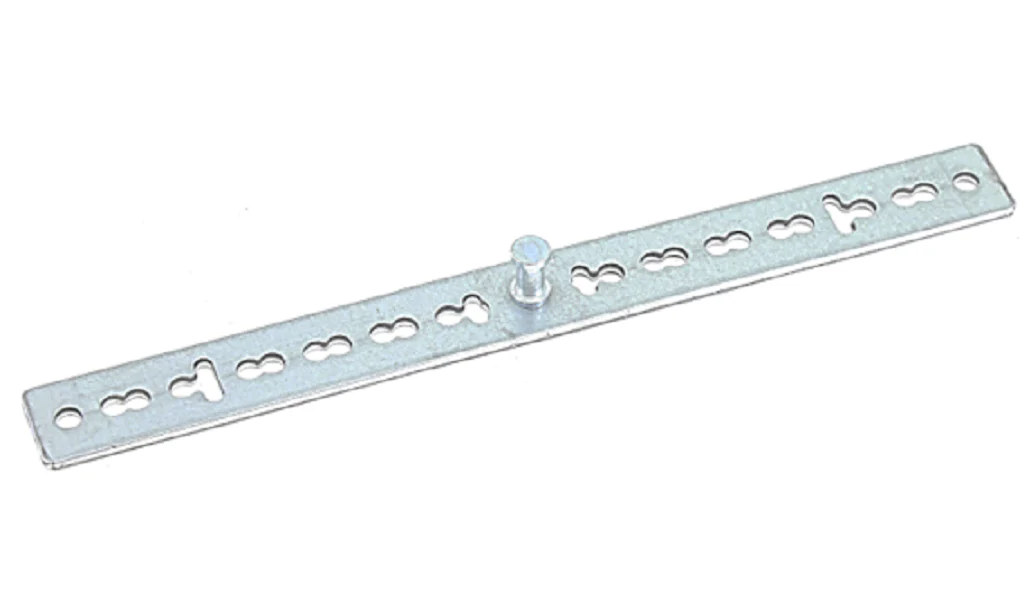

Belimo TF-P Bracket
The Belimo TF-P is a heavy-duty anti-rotation bracket engineered to secure damper actuators and prevent unwanted motor housing rotation during operation. Designed specifically for architectural and industrial HVAC applications, this T-bracket ensures precise alignment for Belimo TF series, NKQ, AM, NM, and LM actuators. By engaging the slot at the base of the actuator, the TF-P provides the necessary mechanical leverage to counteract actuator torque, maintaining the integrity of the drive connection even in high-static pressure systems. Its high-strength, corrosion-resistant metal construction makes it a reliable choice for long-term field use in damp or demanding environments. Contractors often utilize this mounting accessory when direct-coupling to a 1/4" to 1/2" damper shaft to ensure a stable, fixed point for the actuator's fail-safe spring return action. Whether performing a damper actuator replacement or a new installation, this universal mounting bracket simplifies the mounting process while providing the rigid support required for accurate HVAC ventilation control.
- Universal Compatibility: Interlocks seamlessly with Belimo TF, NKQ, AM, NM, and LM series actuators.
- Enhanced Torque Support: Provides a robust anti-rotation anchor to handle high-torque actuator movement without slippage.
- Durable Construction: Manufactured from zinc-coated or treated metal for superior corrosion resistance in diverse climates.
- Simplified Installation: Features pre-drilled holes for rapid mounting to ductwork using standard #8 self-tapping screws.
- Fail-Safe Stability: Essential for maintaining the correct positioning of spring-return actuators during power loss cycles.
Common Questions:
Will this bracket work with non-Belimo actuators?
The TF-P is specifically designed to fit the anti-rotation slot dimensions of Belimo TF and associated MFT/SR series actuators. While it may fit some generic housings, technical compatibility is only confirmed for the listed Belimo product lines.
Can this be mounted in tight spaces?
Yes, the T-style design allows for versatile positioning; several technicians prefer mounting it at a slight angle or using it as a spacer when clearance between the shaft and the duct wall is minimal.
Is additional hardware required for the actuator connection?
The bracket provides the mounting point, but you must ensure the actuator's universal clamp and V-bolt are properly torqued (typically 6-8 ft-lb) to the drive shaft to complement the bracket's stability.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $6.89
-65%$6.89
$2.41Belimo TF-P Bracket
The Belimo TF-P is a heavy-duty anti-rotation bracket engineered to secure damper actuators and prevent unwanted motor housing rotation during operation. Designed specifically for architectural and industrial HVAC applications, this T-bracket ensures precise alignment for Belimo TF series, NKQ, AM, NM, and LM actuators. By engaging the slot at the base of the actuator, the TF-P provides the necessary mechanical leverage to counteract actuator torque, maintaining the integrity of the drive connection even in high-static pressure systems. Its high-strength, corrosion-resistant metal construction makes it a reliable choice for long-term field use in damp or demanding environments. Contractors often utilize this mounting accessory when direct-coupling to a 1/4" to 1/2" damper shaft to ensure a stable, fixed point for the actuator's fail-safe spring return action. Whether performing a damper actuator replacement or a new installation, this universal mounting bracket simplifies the mounting process while providing the rigid support required for accurate HVAC ventilation control.
- Universal Compatibility: Interlocks seamlessly with Belimo TF, NKQ, AM, NM, and LM series actuators.
- Enhanced Torque Support: Provides a robust anti-rotation anchor to handle high-torque actuator movement without slippage.
- Durable Construction: Manufactured from zinc-coated or treated metal for superior corrosion resistance in diverse climates.
- Simplified Installation: Features pre-drilled holes for rapid mounting to ductwork using standard #8 self-tapping screws.
- Fail-Safe Stability: Essential for maintaining the correct positioning of spring-return actuators during power loss cycles.
Common Questions:
Will this bracket work with non-Belimo actuators?
The TF-P is specifically designed to fit the anti-rotation slot dimensions of Belimo TF and associated MFT/SR series actuators. While it may fit some generic housings, technical compatibility is only confirmed for the listed Belimo product lines.
Can this be mounted in tight spaces?
Yes, the T-style design allows for versatile positioning; several technicians prefer mounting it at a slight angle or using it as a spacer when clearance between the shaft and the duct wall is minimal.
Is additional hardware required for the actuator connection?
The bracket provides the mounting point, but you must ensure the actuator's universal clamp and V-bolt are properly torqued (typically 6-8 ft-lb) to the drive shaft to complement the bracket's stability.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
