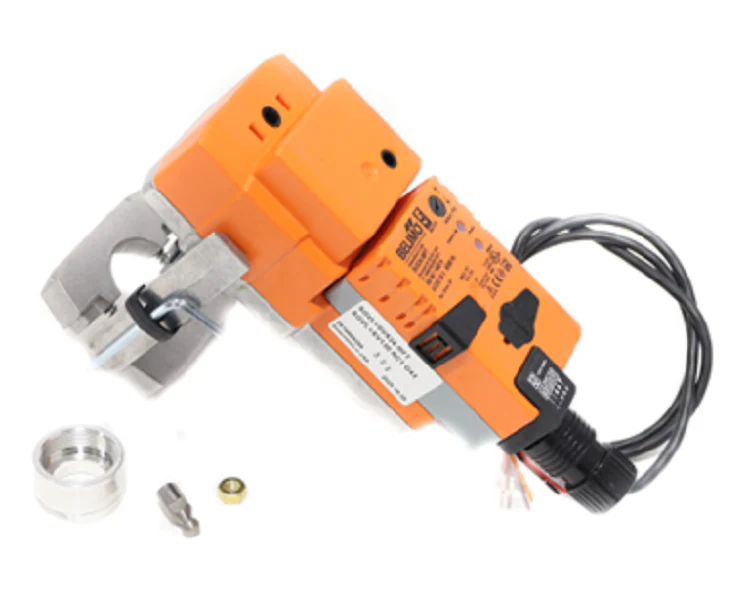

Belimo SGVL+SVX24-MFT Actuator
The Belimo SGVL+SVX24-MFT Actuator is a precision-engineered globe valve linkage and motor assembly designed for high-performance HVAC retrofit applications. This non-spring return linear actuator delivers a robust 337 lbf (1500 N) of force, ensuring reliable close-off against high differential pressures in commercial hydronic systems. Utilizing Multi-Function Technology (MFT), this unit is fully programmable, allowing technicians to field-configure control signals including 4-20mA (via 500 Ohm resistor), 0.5-10 VDC, floating point, and on/off control. Operating on 24VAC/VDC, the SVX24-MFT features a selectable direction of motion and a manual override via a 4 mm hex crank for emergency positioning. The SGVL retrofit kit is specifically optimized for Schneider Electric globe valves, providing up to 20 mm of linear stroke. Its IP54 / NEMA 2 rated enclosure ensures durability in demanding mechanical rooms, while the digital brushless DC motor provides maintenance-free operation and precise positioning accuracy for valve automation.
Key Benefits- Adaptive Control: The MFT programmable interface allows for customized proportional control and feedback signals to match specific system requirements.
- High Close-Off Force: Provides 340 lbf of force to handle demanding globe valve applications without the risk of leakage or hunting.
- Technician-Friendly Install: The SGVL linkage simplifies the retrofit process for Schneider VB7000 and VB9000 series valves, reducing downtime.
- Efficient Performance: Low power consumption (1.5W running / 2W holding) optimizes energy management across large-scale building automation networks.
- What valves are compatible with the SGVL linkage? This specific retrofit kit is engineered for use with Schneider Electric (Invensys/Barber Colman) globe valves ranging from 1/2" to 2".
- How do I wire the SVX24-MFT for 4-20mA input? Use a 500 Ohm resistor (ZG-R01) across the input wires to convert the current signal to a 2-10 VDC control signal readable by the SVX24-MFT.
- Can this actuator be used in a fail-safe application? No, this is a non-spring return (NSR) actuator. For fail-safe requirements, an electronic fail-safe (SVKB) or spring-return model is necessary.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
