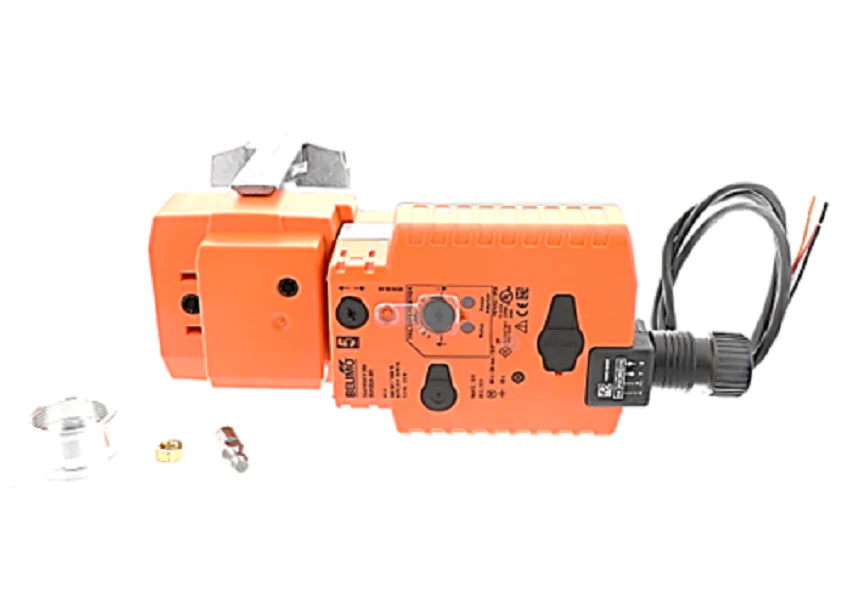

Belimo SGVL+SVKB24-SR Actuator
The Belimo SGVL+SVKB24-SR is a robust globe valve actuator assembly designed for precise modulating control in high-performance hydronic systems. Operating on a 24V AC/DC power supply, this unit delivers a reliable 337 lbf (1500 N) force, making it suitable for demanding HVAC valve automation tasks. The integrated SGVL linkage ensures seamless adaptation to compatible globe valves, while the SVKB24-SR actuator utilizes a 2 to 10 VDC control signal for accurate positioning. This linear actuator is engineered with brushless DC motor technology, providing constant torque and reduced maintenance requirements over the lifecycle of the commercial HVAC system. The electronic fail-safe (non-spring return) design provides consistent performance in chilled water or hot water applications. With an IP54 protection rating, this assembly is built to withstand standard mechanical room environments while maintaining NEMA 2 enclosure standards for electrical safety and reliability.
Key Benefits
- Compatible with various Belimo globe valve bodies via the high-torque SGVL globe valve linkage.
- Features 337 lbf force for reliable close-off against high differential pressures.
- Utilizes a 2-10 VDC feedback signal for real-time position monitoring via a BAS or DDC controller.
- Equipped with automatic stroke adjustment to simplify field commissioning and ensure full valve travel.
- Brushless DC motor technology eliminates the need for limit switches, preventing motor burnout and improving valve actuator efficiency.
Common Questions
How do I wire the SGVL+SVKB24-SR for 2-10V modulating control?
Connect the 24V power to terminals 1 and 2, and the control signal to terminal 3. Ensure the common is shared if using different power sources for the controller and actuator.
Is the SVKB24-SR compatible with 4-20mA signals?
Yes, this model can accept a 4-20mA control signal by installing a 500-ohm resistor across the input terminals to convert the current signal to a 2-10 VDC range.
Can this actuator be manually overridden during a power failure?
Yes, the assembly includes a manual override crank that allows a technician to position the valve manually when the power is disconnected.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
