Belimo SGVL+SVB24-SR Actuator

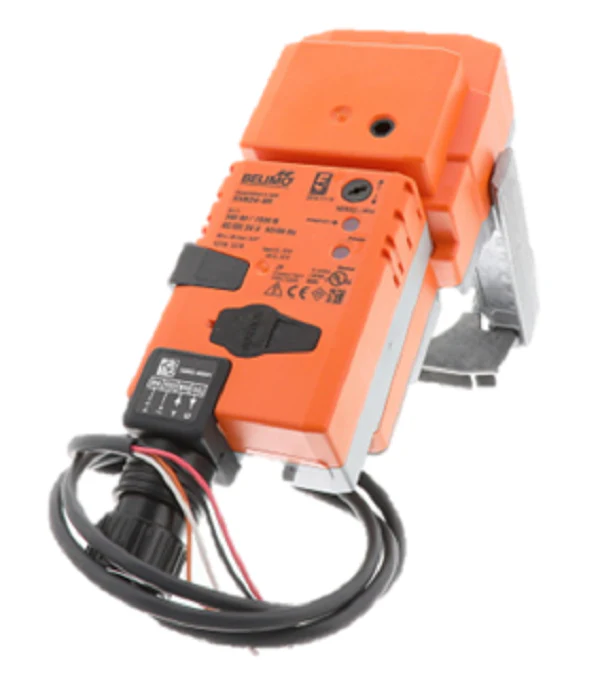

The Belimo SGVL+SVB24-SR Actuator is a high-torque globe valve actuator designed for precise HVAC flow control in demanding commercial hydronic systems. Engineered for seamless field integration, the SGVL linkage combined with the SVB24-SR linear actuator delivers 337 lbf (1500 N) of force, ensuring reliable operation of globe valves against high close-off pressures. This assembly utilizes a 24V AC/DC power supply and accepts a standard 2-10VDC modulating signal for proportional control. Technical specifications include a 0.75-inch (20mm) stroke length and a non-spring return (NSR) mechanism, prioritizing steady-state positioning and energy efficiency. The brushless DC motor technology prevents burnout due to stalls, while the manual override allows for commissioning adjustments without power. For contractors upgrading Belimo globe valve assemblies, this unit provides the necessary thrust and stroke precision to maintain tight control loops in chilled water or steam applications.
Technical Specifications & Key Benefits
- 337 lbf Close-off Force: Provides robust 1500 N of thrust to handle high differential pressures in modulating control applications.
- Universal 2-10VDC Input: Standardized proportional control signal ensures compatibility with most Building Automation Systems (BAS) and HVAC controllers.
- NSR Manual Override: Non-spring return design includes a manual crank for field adjustments and emergency positioning.
- Multi-Function Technology: Compatible with various globe valve bodies via the SGVL valve linkage, simplifying inventory for HVAC retrofits.
- Electronic Stall Protection: Internal circuitry protects the motor across the entire stroke, eliminating the need for end-of-travel limit switches.
Common Questions
What is the maximum stroke length for the SVB24-SR?
The unit is designed for a standard 0.75-inch (20mm) stroke, which is typical for most mid-sized globe valve bodies used in terminal units and air handlers.
Can this actuator be used in steam applications?
Yes, when paired with the correct Belimo globe valve linkage and body rated for the specific temperature and pressure of the steam system.
Is a separate power supply required for the control signal?
No, the Belimo SGVL+SVB24-SR operates on a 24V supply for both the motor and the internal logic processing the 2-10VDC control signal.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Belimo SGVL+SVB24-SR Actuator
The Belimo SGVL+SVB24-SR Actuator is a high-torque globe valve actuator designed for precise HVAC flow control in demanding commercial hydronic systems. Engineered for seamless field integration, the SGVL linkage combined with the SVB24-SR linear actuator delivers 337 lbf (1500 N) of force, ensuring reliable operation of globe valves against high close-off pressures. This assembly utilizes a 24V AC/DC power supply and accepts a standard 2-10VDC modulating signal for proportional control. Technical specifications include a 0.75-inch (20mm) stroke length and a non-spring return (NSR) mechanism, prioritizing steady-state positioning and energy efficiency. The brushless DC motor technology prevents burnout due to stalls, while the manual override allows for commissioning adjustments without power. For contractors upgrading Belimo globe valve assemblies, this unit provides the necessary thrust and stroke precision to maintain tight control loops in chilled water or steam applications.
Technical Specifications & Key Benefits
- 337 lbf Close-off Force: Provides robust 1500 N of thrust to handle high differential pressures in modulating control applications.
- Universal 2-10VDC Input: Standardized proportional control signal ensures compatibility with most Building Automation Systems (BAS) and HVAC controllers.
- NSR Manual Override: Non-spring return design includes a manual crank for field adjustments and emergency positioning.
- Multi-Function Technology: Compatible with various globe valve bodies via the SGVL valve linkage, simplifying inventory for HVAC retrofits.
- Electronic Stall Protection: Internal circuitry protects the motor across the entire stroke, eliminating the need for end-of-travel limit switches.
Common Questions
What is the maximum stroke length for the SVB24-SR?
The unit is designed for a standard 0.75-inch (20mm) stroke, which is typical for most mid-sized globe valve bodies used in terminal units and air handlers.
Can this actuator be used in steam applications?
Yes, when paired with the correct Belimo globe valve linkage and body rated for the specific temperature and pressure of the steam system.
Is a separate power supply required for the control signal?
No, the Belimo SGVL+SVB24-SR operates on a 24V supply for both the motor and the internal logic processing the 2-10VDC control signal.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
