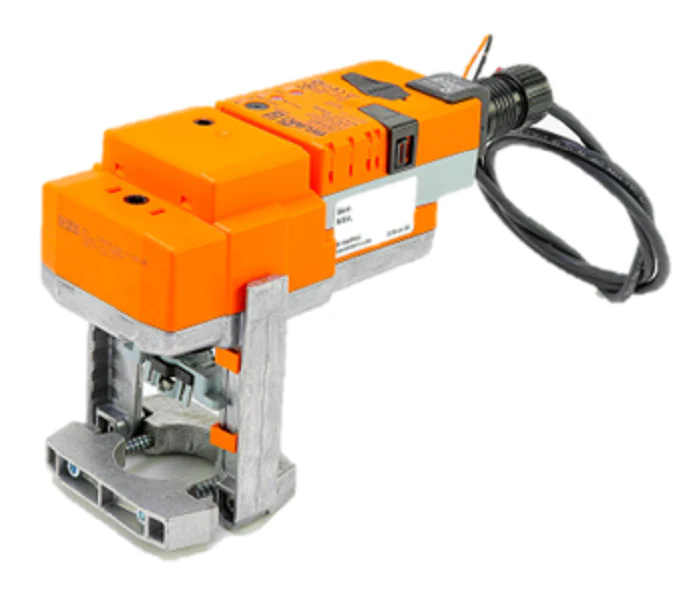

Belimo SGVL+LVX24-MFT Actuator
The Belimo SGVL+LVX24-MFT Actuator is a heavy-duty globe valve linkage and proportional actuator assembly engineered for precise HVAC valve control in demanding hydronic systems. Operating on a 24V AC/DC power supply, this Multi-Function Technology (MFT) unit provides a 100 mm stroke and 112 lbs of linear force, making it indispensable for modulating steam or hot/chilled water applications. The MFT programmable actuator allows for field tuning of control signals (2-10 VDC, 4-20 mA), running time, and feedback, ensuring seamless integration with existing Building Automation Systems (BAS). The SGVL linkage is designed for high-torque performance on globe valves, providing a reliable mechanical connection that resists fatigue under high differential pressures. For contractors, the LVX24-MFT ensures superior positioning accuracy and fail-safe performance without the need for additional mechanical adjustments, streamlining onsite commissioning and long-term diagnostic monitoring.
Key Benefits- Precise Flow Control: High-resolution proportional 2-10 VDC signal control ensures accurate valve positioning for optimal thermal exchange.
- MFT Versatility: Field-programmable parameters via Belimo PC-Tool allow for custom input signals and feedback adjustments to match specific site requirements.
- Simplified Installation: The SGVL globe valve linkage provides a direct-coupled solution that reduces setup time and mechanical backlash.
- Durable Performance: Brushless DC motor technology maintains constant torque and speed regardless of load, extending the lifecycle of the valve actuator.
Can the control signal be changed from 2-10 VDC to 4-20 mA in the field?
Yes, the Belimo MFT capabilities allow the input signal to be reconfigured using the appropriate programming tool to accommodate various controller outputs.
What is the purpose of the SGVL linkage in this assembly?
The SGVL linkage converts the rotary motion of the actuator into the linear motion required to operate globe valves, providing the necessary stroke and force for secure shut-off.
Does this actuator require an end-switch for position feedback?
The LVX24-MFT provides an electronic 2-10 VDC feedback signal as standard, which communicates the actual valve position to the BAS without mechanical switches.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
