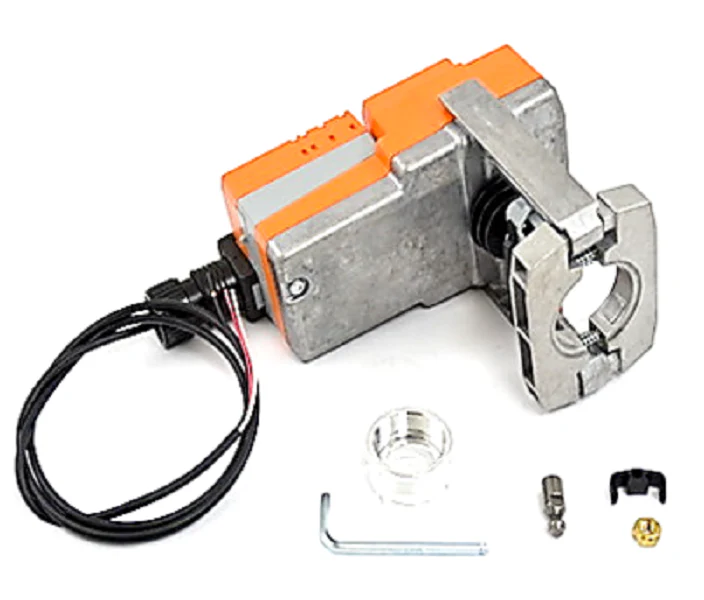

Belimo SGVL+LVX24-3 Actuator
The Belimo SGVL+LVX24-3 is a precision-engineered globe valve actuator and linkage assembly designed for high-performance fluid control in pressure-independent and mixing applications. Operating on a 24V AC/DC power supply, this non-spring return actuator provides on/off or floating point control, ensuring reliable positioning for HVAC hydronic systems. The LVX24-3 motor delivers 100 lbf of linear force, making it suitable for standard globe valves with up to 0.75-inch travel. The integrated SGVL linkage allows for seamless field mounting on various industrial valve bodies, reducing installation time for contractors. Constant torque and speed across the stroke range ensure stable system modulation without hunting. This assembly is rated for NEMA 2/IP54 environments, featuring an electronic stroke-limiting mechanism to protect the motor from mechanical overload. It is a preferred solution for chilled water systems and hot water applications requiring precise flow regulation and long-term durability in commercial mechanical rooms.
- Universal Compatibility: The SGVL linkage integrates with most standard globe valve bodies for efficient retrofit or new construction installation.
- Flexible Control Options: Supports both on/off and floating point (3-point) control configurations for versatile system integration.
- Brushless DC Technology: Microprocessor-controlled motor ensures maintenance-free operation and consistent timing regardless of load.
- Manual Override: Features an external manual override button for manual positioning during commissioning or emergency system bypass.
- Durable Construction: Built with high-grade materials to withstand the thermal demands of high-temperature hydronic loops.
Common Questions
Can the LVX24-3 be used in fail-safe applications?
No, this is a non-spring return actuator. For fail-safe requirements, a spring-return model or an electronic fail-safe (EFS) version would be required.
What is the typical stroke timing for this actuator?
The Belimo LVX24-3 typically features a constant motor run time of 150 seconds, providing stable control and preventing water hammer in large piping systems.
Is the SGVL+LVX24-3 compatible with 120V power sources?
No, this unit is designed strictly for 24V AC/DC. Using a transformer is necessary if the primary source is 120V or 230V.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
