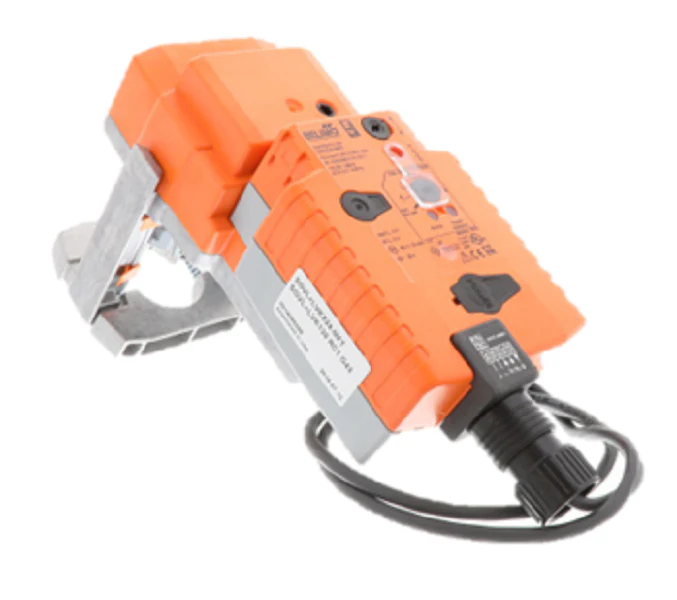

Belimo SGVL+LVKX24-MFT Actuator
The Belimo SGVL+LVKX24-MFT Actuator is a field-proven electronic fail-safe solution designed specifically for Schneider globe valve retrofit applications. This multi-function technology actuator delivers 112 lbf (500 N) of force, providing reliable linear control for 1/2-inch to 2-inch two-way or three-way HVAC globe valves. Built with a NEMA 2 rated housing and a cast aluminum SGVL retrofit linkage, this assembly ensures precise alignment and secure coupling to the valve stem. The 24V Vac/Vdc power supply and configurable control inputs—including 4-20mA (500 Ohm), PWM (1500 Ohm), and floating point—make it highly compatible with existing BMS (Building Management Systems). With a 95-second motor run time and a fast electronic fail-safe response of less than 35 seconds, this unit is engineered for high-demand chilled water, hot water, and steam applications requiring fail-safe positioning upon power loss.
Key Benefits- Universal Compatibility: Specifically engineered as a high-performance Schneider globe valve linkage for Siebe, Invensys, and Barber Colman valves.
- Precision Control: Features MFT (Multi-Function Technology) for field-programmable control signals and feedback, ensuring optimal loop performance.
- Enhanced Reliability: The electronic fail-safe actuator provides a programmable safety position without the mechanical wear of traditional spring returns.
- Robust Construction: Die-cast aluminum and high-strength plastic casing provide durability in demanding mechanical rooms.
- Ease of Installation: Includes 3 feet of 18 GA plenum-rated cable and a 1/2-inch NPT conduit connector for rapid field wiring.
What valves is the SGVL linkage compatible with?
The SGVL linkage is designed for 1/2" to 2" Schneider Electric (formerly Siebe, Invensys, or Barber Colman) VB7 and VB9 series globe valves, as well as Belimo G2 and G3 series.
Can I change the fail-safe direction in the field?
Yes, the LVKX24-MFT actuator features a selectable fail-safe direction switch, allowing you to configure the valve to fail open or closed depending on your system requirements.
Is this actuator suitable for steam applications?
Yes, this globe valve actuator is rated for service in chilled water, hot water, and steam applications, provided the media temperatures remain within the valve and linkage specifications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $697.14
-65%$697.14
$244.00Belimo SGVL+LVKX24-MFT Actuator
The Belimo SGVL+LVKX24-MFT Actuator is a field-proven electronic fail-safe solution designed specifically for Schneider globe valve retrofit applications. This multi-function technology actuator delivers 112 lbf (500 N) of force, providing reliable linear control for 1/2-inch to 2-inch two-way or three-way HVAC globe valves. Built with a NEMA 2 rated housing and a cast aluminum SGVL retrofit linkage, this assembly ensures precise alignment and secure coupling to the valve stem. The 24V Vac/Vdc power supply and configurable control inputs—including 4-20mA (500 Ohm), PWM (1500 Ohm), and floating point—make it highly compatible with existing BMS (Building Management Systems). With a 95-second motor run time and a fast electronic fail-safe response of less than 35 seconds, this unit is engineered for high-demand chilled water, hot water, and steam applications requiring fail-safe positioning upon power loss.
Key Benefits- Universal Compatibility: Specifically engineered as a high-performance Schneider globe valve linkage for Siebe, Invensys, and Barber Colman valves.
- Precision Control: Features MFT (Multi-Function Technology) for field-programmable control signals and feedback, ensuring optimal loop performance.
- Enhanced Reliability: The electronic fail-safe actuator provides a programmable safety position without the mechanical wear of traditional spring returns.
- Robust Construction: Die-cast aluminum and high-strength plastic casing provide durability in demanding mechanical rooms.
- Ease of Installation: Includes 3 feet of 18 GA plenum-rated cable and a 1/2-inch NPT conduit connector for rapid field wiring.
What valves is the SGVL linkage compatible with?
The SGVL linkage is designed for 1/2" to 2" Schneider Electric (formerly Siebe, Invensys, or Barber Colman) VB7 and VB9 series globe valves, as well as Belimo G2 and G3 series.
Can I change the fail-safe direction in the field?
Yes, the LVKX24-MFT actuator features a selectable fail-safe direction switch, allowing you to configure the valve to fail open or closed depending on your system requirements.
Is this actuator suitable for steam applications?
Yes, this globe valve actuator is rated for service in chilled water, hot water, and steam applications, provided the media temperatures remain within the valve and linkage specifications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
