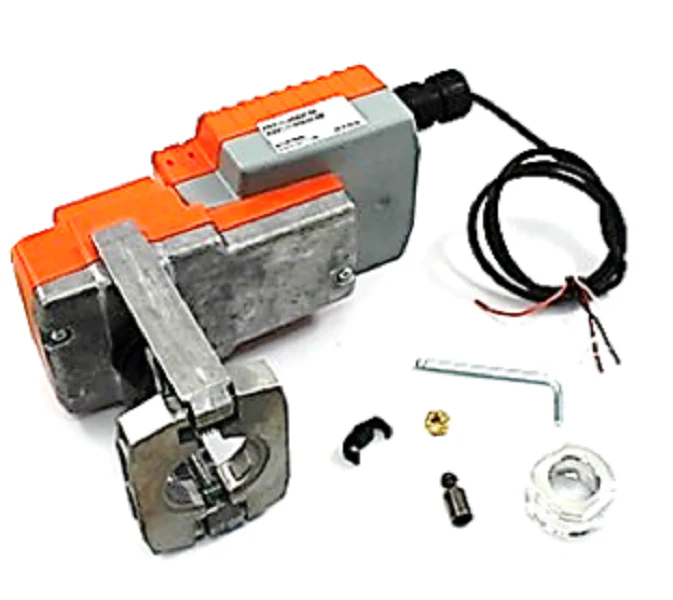

Belimo SGVL+LVKB24-SR Actuator
The Belimo SGVL+LVKB24-SR is an industrial-grade retrofit globe valve linkage and actuator assembly designed specifically for Schneider globe valves. This high-torque solution features the LVKB24-SR linear actuator, delivering 115 lbf (500 N) of force to ensure reliable close-off in demanding HVAC steam and hydronic applications. The proportional 2-10 VDC control signal (convertible to 4-20 mA with a 500 ? resistor) allows for precise modulation, while the electronic fail-safe technology provides a consistent return to the safety position during a power loss event. Built with a brushless DC motor, this assembly maintains a constant 90-second run time regardless of the load, reducing hunting and mechanical wear. The rugged IP54/NEMA 2 rated housing and cast aluminum linkage ensure long-term durability in mechanical rooms. Integrated manual override and a field-selectable direction of motion switch simplify commissioning for field technicians.
Key Benefits
- High Close-Off Performance: Delivers 115 lbf of force, ideal for 1/2" to 2" Schneider valve bodies requiring tight shut-off.
- Energy Efficient Operation: Low power consumption of only 2.5W during operation and 1.5W in holding mode.
- Fail-Safe Reliability: Features electronic fail-safe functionality with a field-reversible direction for fail-open or fail-close requirements.
- Precise Control: Microprocessor-controlled brushless DC motor provides accurate positioning and stall protection.
- Simple Installation: Modular SGVL linkage allows for direct attachment to existing valve bonnets without specialized tools.
Common Questions
What is the typical running time for this actuator?
The motor has a constant running time of 90 seconds, while the electronic fail-safe return takes less than 35 seconds.
Can I use a 4-20 mA control signal with this model?
Yes. While the default is 2-10 VDC, you can use a 4-20 mA signal by installing a 500 ? resistor across the input leads.
Is this compatible with non-Schneider valves?
The SGVL series is specifically engineered for Schneider globe valve assemblies. For other brands, a universal UGVL linkage may be required.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
