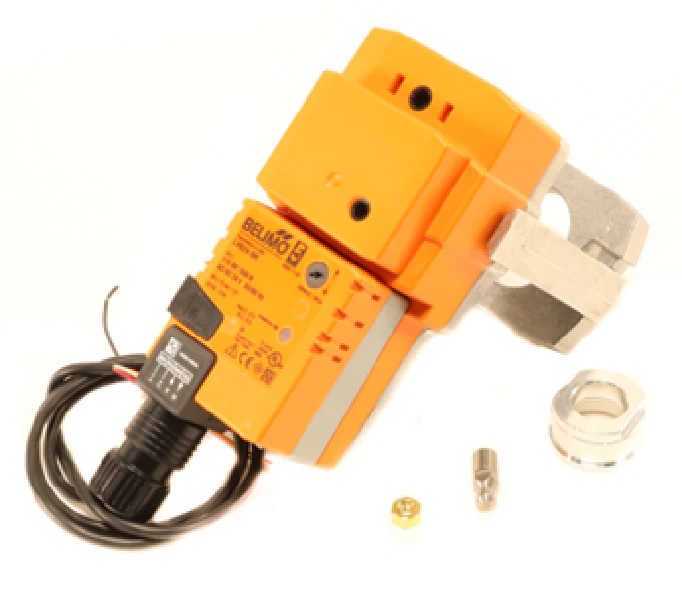

Belimo SGVL+LVB24-SR Actuator
The Belimo SGVL+LVB24-SR is a precision-engineered linear valve actuator designed for the automated control of globe valves in demanding HVACR systems. This 24VAC/DC assembly provides a 2-10VDC proportional control signal, ensuring accurate positioning for optimized hydronic flow. Engineered for retrofitting globe valves, the SGVL linkage simplifies the conversion of manual or pneumatic valves to electronic control without requiring system drainage. With a 3/4 inch stroke and dedicated force output, this non-spring return actuator is ideal for chilled water and hot water applications where reliable modulating control is critical. The LVB24-SR drive mechanism features overload protection and a constant runtime, eliminating the need for periodic calibration. For technicians, the manual override and status indicators streamline commissioning and HVAC troubleshooting. This robust combination ensures long-term valve assembly performance in high-cycle commercial building environments.
Key Benefits
- Efficient Installation: The SGVL globe valve linkage allows for rapid field mounting on existing valve bodies without extensive downtime.
- Precise Modulation: Provides accurate 2-10VDC feedback and positioning for tight temperature tolerances in hydronic systems.
- System Durability: Mechanical overload protection prevents motor burnout, extending the operational life of the Belimo actuator.
- Universal Compatibility: Works seamlessly with standard DDC controllers using industry-standard proportional control logic.
- Manual Override: Integrated manual positioning allows for easy system testing and bypass during power failures or maintenance.
Common Questions
How do I calibrate the stroke for the LVB24-SR?
The actuator features an automatic stroke adaptation function; upon installation, it will detect the valve's end stops and calibrate the 2-10VDC signal to the physical travel limits automatically.
Can this actuator be used in steam applications?
The SGVL linkage is primarily rated for chilled and hot water systems. Always verify the specific media temperature and pressure ratings of your valve body to ensure compatibility with the actuator's ambient operating range.
What happens if the control signal is lost?
As a non-spring return actuator, the device will remain in its last commanded position upon loss of signal, unless configured otherwise through the controller logic.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
