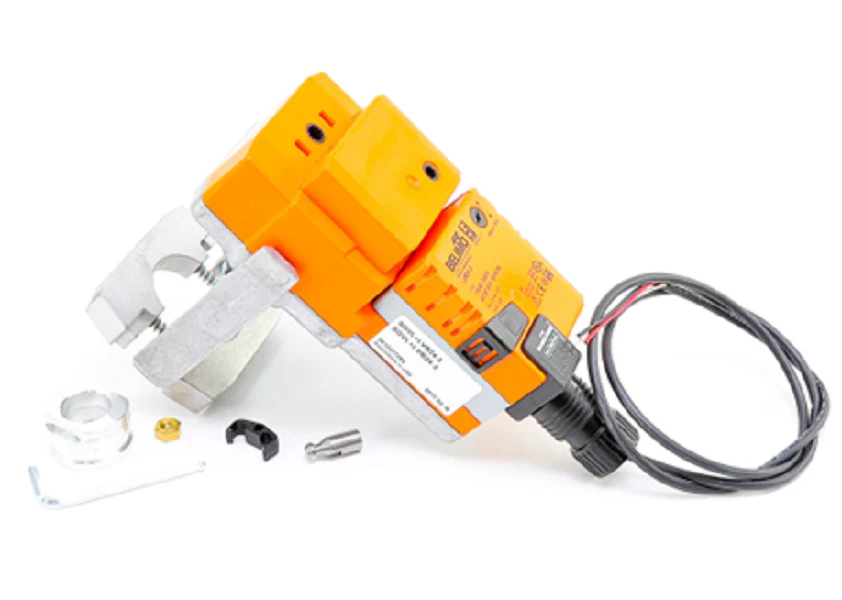

Belimo SGVL+LVB24-3 Actuator
The Belimo SGVL+LVB24-3 is a purpose-built linear valve actuator and linkage assembly designed for precise control of globe valves. Engineered for 24V AC/DC power systems, this non-spring return actuator supports both on/off and floating control signals, offering flexibility for varied HVAC control loops. The integrated SGVL globe valve linkage ensures a seamless mechanical interface, converting rotational torque into the linear motion required for stem-up or stem-down 1/2" to 2" valve applications. Built with a brushless DC motor, the unit delivers consistent control valve stroke timing and protection against overloading without the need for end-switches. This assembly is standard for chilled water systems and steam applications where reliable shut-off and modulating performance are critical. The LVB24-3 actuator provides 100 lb [450 N] of force, ensuring positive seat positioning under high-static load conditions.
Key Benefits
- Versatile Control Logic: Compatible with both 3-point floating control and standard on/off signals for localized or central BAS integration.
- Automatic Calibration: The Belimo SGVL linkage facilitates easy installation with self-adjusting stroke mechanics to match valve travel.
- High Reliability: Features a brushless DC motor designed for extended service life in demanding mechanical rooms.
- Manual Override: External push-button manual gear release allows for manual valve positioning during commissioning or power loss.
- NEMA 2 Protection: Rated for indoor environments, protecting internal components from falling dirt and light water drip.
Common Questions
Does this actuator return to a safe position during power failure?
No, the Belimo LVB24-3 is a non-spring return actuator. It will maintain its last position upon loss of power. For fail-safe requirements, an electronic fail-safe or spring-return model is needed.
Can I use the SGVL+LVB24-3 for steam valve applications?
Yes, this globe valve linkage and actuator combination is frequently used on steam valves, provided the media temperature remains within the specified limits of the linkage assembly.
How do I set the direction of rotation or stroke?
The direction is determined by the on/off/floating wiring configuration. Ensure the dip switches or wiring leads are set correctly to match the valve's "open" or "closed" stem position.
This item is not eligible for free shipping.
