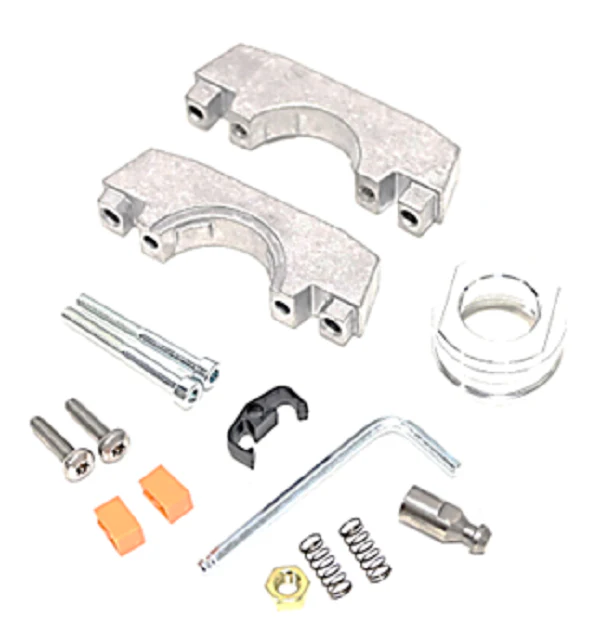

Belimo SGVL Linkage Kit
The Belimo SGVL Linkage Kit is a specialized retrofit solution designed for field-mounting Belimo LV and SV series actuators onto existing Schneider globe valves. This heavy-duty linkage assembly provides a 0.95-inch [24 mm] stroke, facilitating a precise mechanical connection for chilled water, hot water, and steam applications. Built with a cast aluminum frame and a high-strength glass-filled nylon coupling, the SGVL ensures stable actuator-to-valve alignment and consistent close-off pressure performance across varying load conditions. It is specifically compatible with 1/2" to 2" Schneider valves, including the VB7 and VB9 legacy series, allowing for seamless integration of non-spring return or electronic fail-safe actuation without the need to break into the piping system or replace the entire valve body.
Key Benefits:- Engineered for Long-Term Reliability: Utilizing stainless steel and nickel-plated steel hardware, this linkage kit is built for durability in demanding commercial HVAC environments.
- Versatile Mounting: The 360-degree mounting position and free-spinning collar allow for flexible installation in tight mechanical spaces.
- Reduced Maintenance Costs: Avoid system drained-downs by upgrading old Schneider globe valves with modern Belimo technology using simple hand tools.
- Precise Control: Maintains accurate coupling and stem travel to ensure optimal valve positioning for centralized climate control.
Is this kit compatible with both 2-way and 3-way valves?
Yes, the Belimo SGVL is designed to adapt to both 2-way and 3-way Schneider globe valves in and normally open or normally closed configurations.
Which actuators are compatible with the SGVL linkage?
This kit is engineered specifically for the LV series and SV series actuators from Belimo, covering both modulating and on/off control types.
Does this kit include the actuator?
No, the SGVL is a mechanical linkage kit. The actuator must be selected and purchased separately based on your specific force and control signal requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $39.62
-65%$39.62
$13.87Belimo SGVL Linkage Kit
