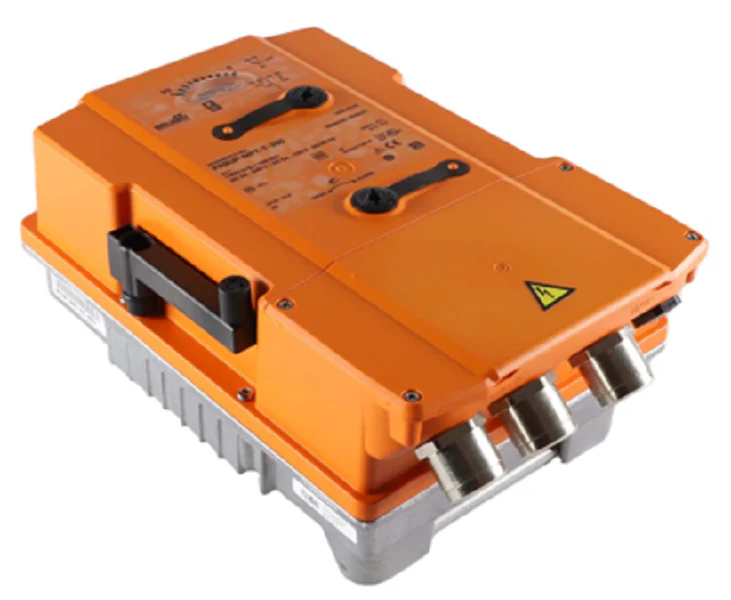

Belimo PRBUP-MFT-T-200 Actuator
The Belimo PRBUP-MFT-T-200 is an industrial-grade non-spring return actuator designed for high-torque butterfly valve applications requiring precise modulation. Operating on a universal 24-240V AC/DC power input, this multi-function technology (MFT) unit provides flexible control signals including 2-10VDC, 4-20mA, and pulse width modulation. Integrated 2xSPDT auxiliary switches allow for seamless position verification and sequence signaling within complex BAS architectures. Built with a rugged NEMA 4X / IP66 housing, the PRBUP-MFT-T-200 ensures reliable performance in harsh environments where moisture and debris are prevalent. The manual override feature and high-resolution brushless DC motor provide consistent 1415 in-lb torque output, making it a staple for large-scale hydronic system balancing and chill water bypass configurations. Contractors favor this model for its field-programmable parameters and broad compatibility with standard industrial valve linkages.
Key Technical Benefits
- Universal Voltage Input: Simplifies inventory and field replacement by supporting any supply voltage from 24V to 240V.
- MFT Programming: Allows for site-specific adjustment of control signals, running time, and torque settings via Belimo software.
- Auxiliary Feedback: Two integrated SPDT switches provide dry contact feedback for end-stop verification and safety interlocks.
- NEMA 4X Protection: Engineered for outdoor and wash-down environments, preventing internal corrosion and electronics failure.
- Electronic Stall Protection: Protects the gear train and motor from damage if a valve blockage occurs, increasing long-term reliability.
Common Technical Questions
Can the PRBUP-MFT-T-200 be synchronized for parallel operation?
Yes, the MFT platform allows for Master/Slave configuration to synchronize two actuators on a single valve shaft or large damper assembly.
How do I field-adjust the auxiliary switch points?
The switches are set to 10° and 85° by default but can be manually adjusted using the internal cams to match specific flow requirements.
Is this actuator suitable for high-vibration cooling tower applications?
Yes, the robust drivetrain and NEMA 4X enclosure are designed to withstand the mechanical stresses typical of cooling tower and industrial chiller environments.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $2,972.66
-65%$2,972.66
$1,040.43Belimo PRBUP-MFT-T-200 Actuator
