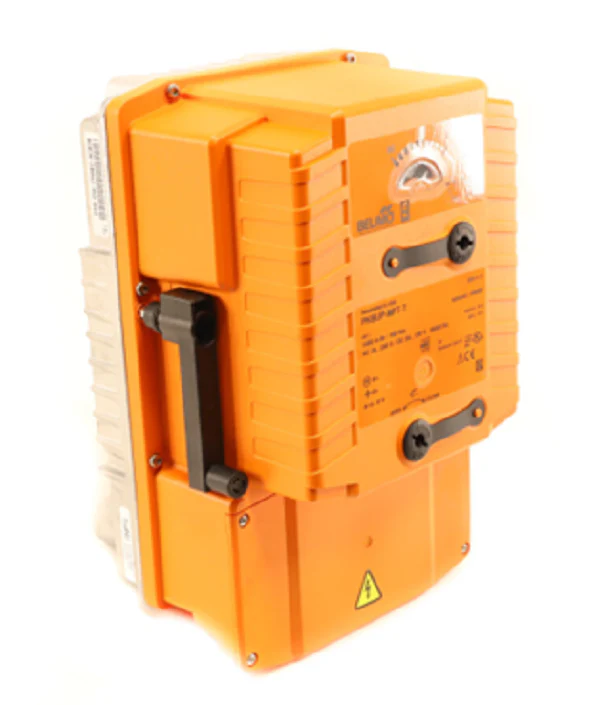

Belimo PKBUP-MFT-T Actuator
The Belimo PKBUP-MFT-T is a high-torque, universal voltage actuator designed for demanding large-scale HVAC applications requiring reliable electronic fail-safe operation. Operating on a 24-240 VAC/DC power range, this 160 in-lb actuator provides consistent control for dampers and valves in critical infrastructure. Utilizing Multi-Function Technology (MFT), technicians can field-configure control signals including 2-10 VDC, 4-20 mA, or floating point to match specific BAS requirements. The NEMA 4X (IP66/67) enclosure ensures durability in harsh environments, guarding internal components against corrosion and moisture. Its brushless DC motor technology provides precise positioning and long-term performance stability without the maintenance overhead of traditional motors. The near-silent operation and programmable running time make the Belimo PKBUP-MFT-T a versatile solution for retrofit projects where high-torque fail-safe performance is non-negotiable.
- Multi-Function Technology (MFT): Allows for custom onsite parameter scaling of control signals and feedback.
- Universal Power Supply: Simplifies inventory and installation by accepting 24-240 VAC/DC without internal adjustment.
- Fail-Safe Security: Integrated supercapacitor technology ensures the actuator returns to a safety position during power loss.
- Rugged Construction: IP66/67 rated housing allows for reliable operation in outdoor or wash-down environments.
- Manual Override: Features a simple-to-use manual crank for emergency adjustments during system commissioning.
Common Questions
How do I configure the fail-safe direction on the PKBUP-MFT-T?
The fail-safe direction (Normal Open or Normal Closed) is selectable via a simple switch under the housing cover. For custom timing or sophisticated profiles, the Belimo ZTH US handheld tool or PC Tool software can be used to program the MFT parameters.
Can this actuator be used in outdoor installations?
Yes, the NEMA 4X / IP66/67 rating makes it suitable for outdoor use. However, we recommend a weather shield for direct UV exposure and ensuring all conduit fittings are properly sealed to prevent internal condensation.
What is the maximum damper area this unit can handle?
While the 160 in-lb torque rating is substantial, the actual damper size depends on the torque requirement (lb-in/sq. ft.) of the specific damper manufacturer. Always calculate the total air pressure load before installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $3,555.73
-65%$3,555.73
$1,244.51Belimo PKBUP-MFT-T Actuator
The Belimo PKBUP-MFT-T is a high-torque, universal voltage actuator designed for demanding large-scale HVAC applications requiring reliable electronic fail-safe operation. Operating on a 24-240 VAC/DC power range, this 160 in-lb actuator provides consistent control for dampers and valves in critical infrastructure. Utilizing Multi-Function Technology (MFT), technicians can field-configure control signals including 2-10 VDC, 4-20 mA, or floating point to match specific BAS requirements. The NEMA 4X (IP66/67) enclosure ensures durability in harsh environments, guarding internal components against corrosion and moisture. Its brushless DC motor technology provides precise positioning and long-term performance stability without the maintenance overhead of traditional motors. The near-silent operation and programmable running time make the Belimo PKBUP-MFT-T a versatile solution for retrofit projects where high-torque fail-safe performance is non-negotiable.
- Multi-Function Technology (MFT): Allows for custom onsite parameter scaling of control signals and feedback.
- Universal Power Supply: Simplifies inventory and installation by accepting 24-240 VAC/DC without internal adjustment.
- Fail-Safe Security: Integrated supercapacitor technology ensures the actuator returns to a safety position during power loss.
- Rugged Construction: IP66/67 rated housing allows for reliable operation in outdoor or wash-down environments.
- Manual Override: Features a simple-to-use manual crank for emergency adjustments during system commissioning.
Common Questions
How do I configure the fail-safe direction on the PKBUP-MFT-T?
The fail-safe direction (Normal Open or Normal Closed) is selectable via a simple switch under the housing cover. For custom timing or sophisticated profiles, the Belimo ZTH US handheld tool or PC Tool software can be used to program the MFT parameters.
Can this actuator be used in outdoor installations?
Yes, the NEMA 4X / IP66/67 rating makes it suitable for outdoor use. However, we recommend a weather shield for direct UV exposure and ensuring all conduit fittings are properly sealed to prevent internal condensation.
What is the maximum damper area this unit can handle?
While the 160 in-lb torque rating is substantial, the actual damper size depends on the torque requirement (lb-in/sq. ft.) of the specific damper manufacturer. Always calculate the total air pressure load before installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
