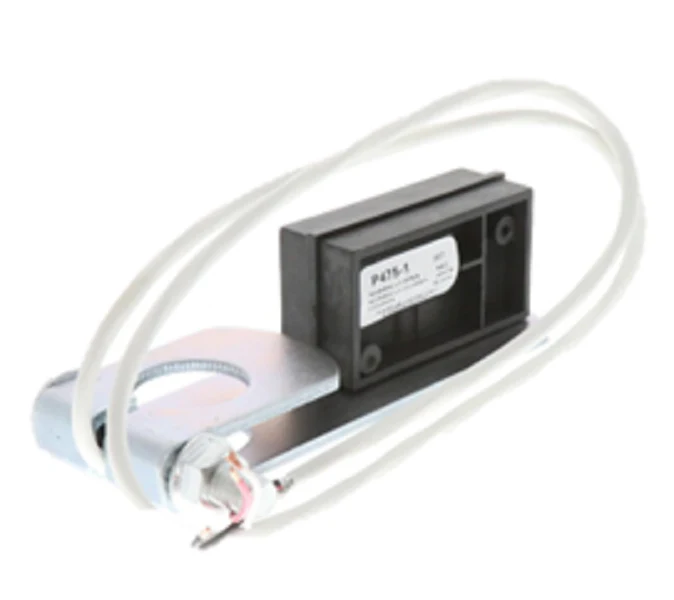

Belimo P475-1 Switch
The Belimo P475-1 is a professional-grade SPDT auxiliary switch designed specifically for direct mounting on Belimo actuators. This non-mercury position switch provides reliable feedback for damper positioning, ensuring precise monitoring of HVAC system states. Engineered for seamless integration, the P475-1 features a single-pole double-throw (SPDT) configuration, allowing for versatile signaling to controllers or safety interlocks. The switch is field-adjustable, enabling technicians to set the switching point anywhere within the actuator’s 0° to 95° rotation. Built with a rugged housing, it maintains electrical integrity in demanding commercial environments. Whether used for end-stop verification or to trigger peripheral equipment, this damper position switch hardware ensures high repeatability and long-term durability. Its compact footprint and direct-drive interface eliminate the need for complex linkages, reducing installation time and potential failure points in the field. This unit is essential for verifying secondary damper positions in building automation systems (BAS) and safety circuits.
Key Benefits- Field-Adjustable Switching Point: Allows for custom calibration of the SPDT contact transition to match specific damper stroke requirements.
- Direct Actuator Mounting: Eliminates external mounting brackets, ensuring a stable and accurate damper position feedback signal.
- Non-Mercury Design: Complies with modern safety and environmental standards while providing reliable mechanical switching.
- High Repeatability: Precision internal cam mechanism ensures consistent activation points over thousands of cycles.
- Simplified Wiring: Features clearly labeled terminals for fast integration into HVAC control circuits and interlocking logic.
Is the Belimo P475-1 compatible with all Belimo actuators?
The P475-1 is specifically designed for use with certain Belimo damper actuators. Always verify the shaft interface and mounting footprint on your specific model before installation.
Can I adjust the switch to trigger at a specific angle?
Yes, the adjustable auxiliary switch can be set by the technician to trip at any point along the actuator's rotation, typically used to signal when a damper is fully open or closed.
What is the electrical rating for the SPDT contacts?
The Belimo P475-1 is rated for pilot duty applications; verify the amperage requirements of your relay or controller to ensure it does not exceed the switch's contact rating.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
