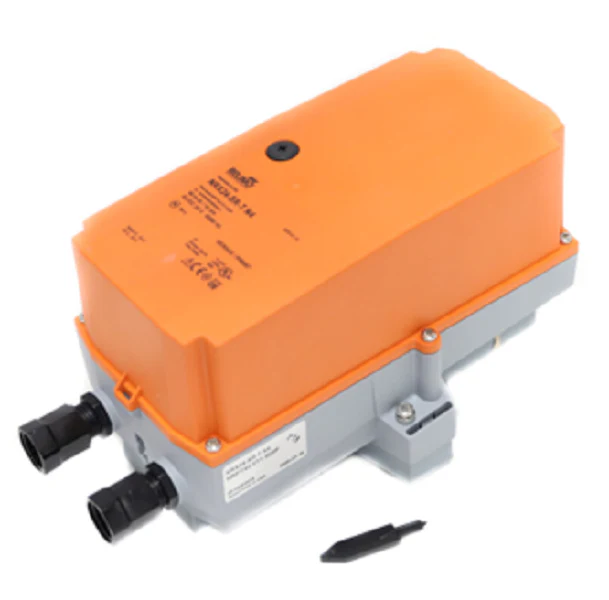

Belimo NRX24-SR-T-N4 Actuator
The Belimo NRX24-SR-T-N4 is a professional-grade non-spring return actuator engineered for high-performance modulation in demanding HVACR environments. This direct-coupled actuator delivers a reliable 70 in-lb torque, making it a staple for contractors managing proportional control across NEMA 4X rated installations. Built for versatility, the unit operates on a standard 24VAC/DC power supply and accepts a 2-10 VDC control signal, ensuring seamless integration with modern building automation systems. The inclusion of a screw terminal strip simplifies field wiring compared to traditional cable models, while the IP66/67 rated enclosure provides superior protection against moisture and debris. Whether you are retrofitting existing Characterized Control Valves (CCV) or implementing new proportional valve actuators, this Belimo NEMA 4 actuator ensures precise positioning with a 90-second run time and manual override capability. Its robust die-cast aluminum housing is designed to withstand harsh outdoor or industrial conditions without compromising signal accuracy.
Key Benefits:
- Rugged NEMA 4X / IP66/67 Protection: Tested to withstand severe weather, wash-down environments, and corrosion, ensuring long-term HVAC control reliability.
- Precise Proportional Modulation: Responds accurately to 2-10 VDC signals for fine-tuned flow control in chilled or hot water systems.
- Contractor-Friendly Installation: Featured screw terminal connections allow for direct 26 to 14 GA wire attachment, reducing the need for additional junction boxes.
- Energy Efficient Operation: Low power consumption (3.5W running, 0.6W holding) reduces the load on 24V transformer sizing.
- Manual Override: Integrated external push button allows for manual positioning of the valve during commissioning or power loss.
Common Questions:
- Can I use this actuator with a 4-20 mA signal? Yes, the Belimo NRX24-SR-T-N4 can be adapted for 4-20 mA control by adding a 500 Ω ZG-R01 resistor in parallel with the signal input.
- Is this suitable for outdoor use? Absolutely. The UL Enclosure Type 4X rating is specifically designed for outdoor applications, protecting the internal motor from wind-blown dust and rain.
- Can these actuators be wired in parallel? Yes, non-spring return actuators may be connected in parallel provided the transformer capacity and input impedance (100 kΩ) are properly accounted for in your actuator wiring.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
