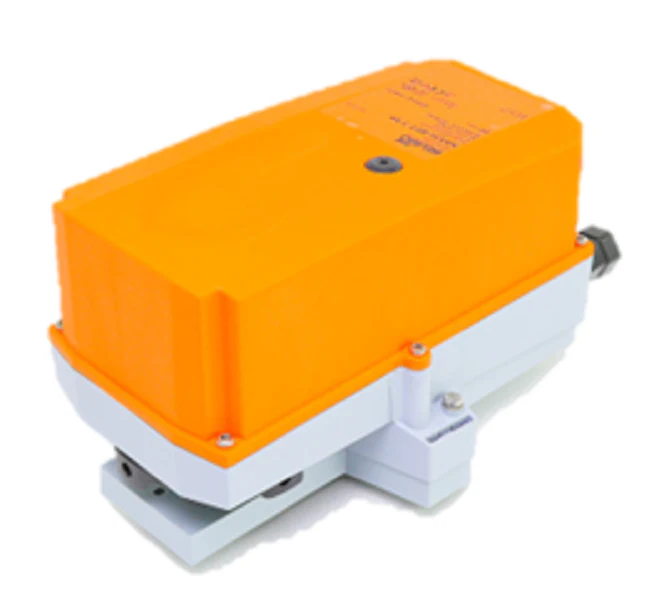

Belimo NRX24-MFT-T-N4 Actuator
The Belimo NRX24-MFT-T-N4 Actuator is a robust, non-spring return solution engineered for precise control of characterized control valves and damper systems in demanding environments. This 24Vac/Vdc motor delivers a stable 70 in-lb torque, making it ideal for managing 1-1/4" to 3" valve assemblies. Utilizing Belimo’s Multi-Function Technology (MFT), the unit is fully field-programmable, supporting 4-20mA (via 500 Ohm resistor), PWM (1500 Ohm), floating point, and on/off control signals. Designed with a NEMA 4X / IP66 rated enclosure, it provides superior protection against moisture, corrosion, and debris in outdoor or high-humidity mechanical rooms. The terminal block connection ensures a clean, professional integration into existing direct-coupled HVACR automation systems without the need for additional junction boxes. This modulating actuator is the professional choice for contractors requiring reliable, high-torque performance and wide-ranging input compatibility.
Key Benefits:- Multi-Function Technology: Field-configurable for proportional control, floating point, or on/off operation to match any controller output.
- Environmentally Hardened: Rugged NEMA 4X housing allows for reliable operation in extreme conditions and outdoor installations.
- Flexible Signal Input: Factory-coded for 2-10 VDC but easily adaptable for 4-20mA and PWM signals to ensure broad BAS compatibility.
- High Torque Output: Provides 70 in-lb of consistent force to drive larger valve bodies and dampers with high close-off requirements.
- What is the default control signal for this model? The NRX24-MFT-T-N4 typically ships with a 2-10 VDC modulating signal as the default, but it can be reconfigured for various inputs including floating point.
- Can I use this for outdoor applications? Yes, the NEMA 4X / IP66 enclosure is specifically rated for outdoor use, providing protection against rain and corrosion.
- How do I wire this for a 4-20mA signal? For 4-20mA control, a 500 Ohm resistor (such as the ZG-R01) is required to convert the signal to the compatible voltage range.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $561.68
-65%$561.68
$196.59Belimo NRX24-MFT-T-N4 Actuator
The Belimo NRX24-MFT-T-N4 Actuator is a robust, non-spring return solution engineered for precise control of characterized control valves and damper systems in demanding environments. This 24Vac/Vdc motor delivers a stable 70 in-lb torque, making it ideal for managing 1-1/4" to 3" valve assemblies. Utilizing Belimo’s Multi-Function Technology (MFT), the unit is fully field-programmable, supporting 4-20mA (via 500 Ohm resistor), PWM (1500 Ohm), floating point, and on/off control signals. Designed with a NEMA 4X / IP66 rated enclosure, it provides superior protection against moisture, corrosion, and debris in outdoor or high-humidity mechanical rooms. The terminal block connection ensures a clean, professional integration into existing direct-coupled HVACR automation systems without the need for additional junction boxes. This modulating actuator is the professional choice for contractors requiring reliable, high-torque performance and wide-ranging input compatibility.
Key Benefits:- Multi-Function Technology: Field-configurable for proportional control, floating point, or on/off operation to match any controller output.
- Environmentally Hardened: Rugged NEMA 4X housing allows for reliable operation in extreme conditions and outdoor installations.
- Flexible Signal Input: Factory-coded for 2-10 VDC but easily adaptable for 4-20mA and PWM signals to ensure broad BAS compatibility.
- High Torque Output: Provides 70 in-lb of consistent force to drive larger valve bodies and dampers with high close-off requirements.
- What is the default control signal for this model? The NRX24-MFT-T-N4 typically ships with a 2-10 VDC modulating signal as the default, but it can be reconfigured for various inputs including floating point.
- Can I use this for outdoor applications? Yes, the NEMA 4X / IP66 enclosure is specifically rated for outdoor use, providing protection against rain and corrosion.
- How do I wire this for a 4-20mA signal? For 4-20mA control, a 500 Ohm resistor (such as the ZG-R01) is required to convert the signal to the compatible voltage range.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
