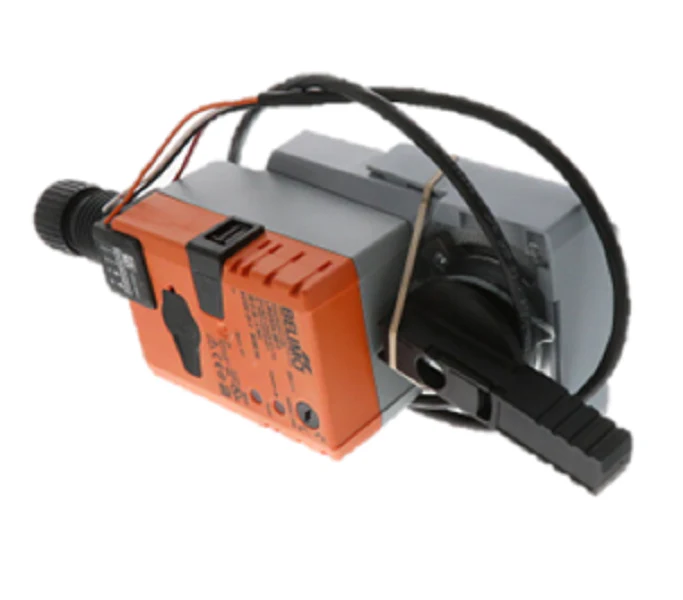

Belimo LRQX24-MFT Actuator
The Belimo LRQX24-MFT Actuator is a high-performance non-spring return solution designed for precise control in HVAC applications. Engineered for versatility, this motor provides 35 in-lb of torque and utilizes Belimo’s Multi-Function Technology (MFT), allowing for specialized tailoring of control signals and feedback. It supports 24Vac/Vdc power inputs and is field-configurable for on/off, floating point, or 4-20mA modulating control via a 500 Ohm resistor. With a rapid 4-second standard run time and a NEMA 2/IP54 rated enclosure, this direct-coupled actuator ensures reliable performance in diverse environments. Technicians can easily manage setups using the manual override button and selectable direction of rotation. Whether you are handling a CCV retrofit or a new installation, the LRQX24-MFT’s programmable parameters ensure compatibility with a wide range of building automation systems.
Key Benefits:- Multi-Function Technology (MFT): Allows for custom configuration of control signals and operational feedback.
- High Speed & Efficiency: Features a fast 4-second motor running time for responsive system adjustments.
- Robust Construction: Housed in a NEMA 2 rated casing suitable for plenum installations.
- Universal Compatibility: Seamlessly integrates with 24V HVAC control circuits and various signal types.
- Ease of Installation: Includes a 3ft plenum-rated cable and a manual override for fast commissioning.
- Can this actuator be used in a fail-safe application? No, this is a non-spring return actuator. If you require a return-to-zero position upon power loss, a spring-return model should be selected.
- How do I configure the 4-20mA input? The LRQX24-MFT requires an external 500 Ohm resistor (ZG-R01) to convert a 4-20mA signal into the required 2-10VDC control range.
- Is the run time adjustable? Yes, the MFT platform allows for the motor run time to be programmed between 2.5 and 10 seconds using the proper Belimo PC tool or handheld device.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
