Belimo LMB24-MFT Actuator

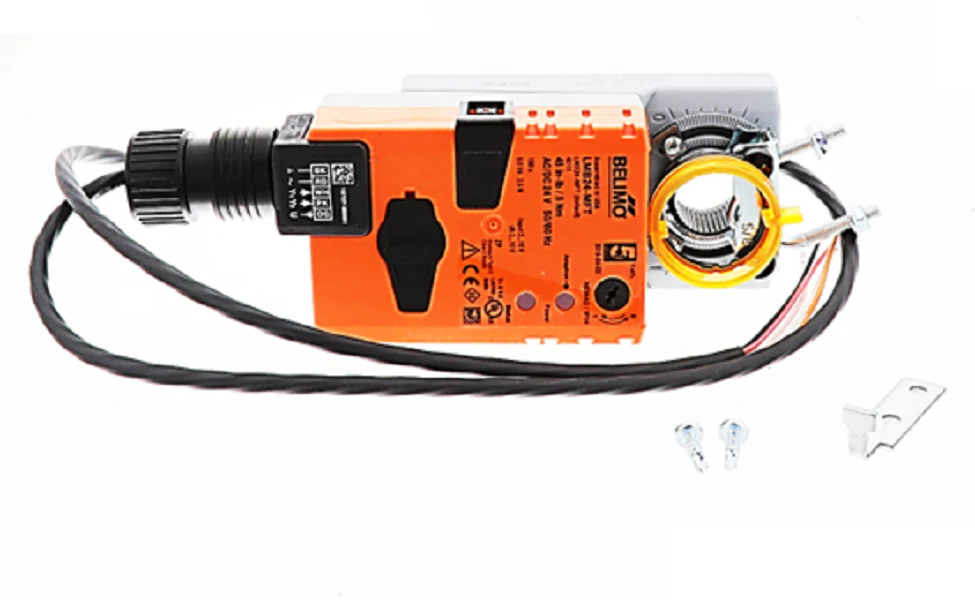

The Belimo LMB24-MFT Actuator is a non-spring return motor designed for precise damper control in commercial HVAC systems. Delivering a steady 45 in-lb torque, this direct-coupled actuator supports a wide variety of control signals through Multi-Function Technology (MFT). It is factory-set for 2-10VDC modulation but is field-programmable to handle floating point, on/off, and PWM control. For 4-20mA logic, a 500 Ohm resistor (model ZG-R01) is required to convert the signal. Operating on 24VAC/DC, the unit features a brushless DC motor with electronic overload protection throughout its 0 to 95-degree rotation, eliminating the need for mechanical limit switches. The NEMA 2 rated housing includes a manual override button and a universal clamp compatible with 1/4 inch to 5/8 inch round shafts, ensuring seamless BAS integration for modulating dampers up to 11 square feet.
Key Benefits for Contractors- Universal Compatibility: The MFT programmable logic allows one damper actuator to replace multiple fixed-signal models, reducing truck stock.
- Reliable Performance: Brushless DC motor technology prevents stalling and ensures constant torque delivery regardless of load.
- Faster Installation: The direct-coupled design requires no crank arms or linkages, mounting directly to the drive shaft.
- High Efficiency: Extremely low power consumption (1.2W in holding mode) reduces transformer sizing requirements for building automation.
- Flexible Field Setup: Includes a reversing switch and manual disengagement button for easy damper setup and testing.
How do I wire the Belimo LMB24-MFT for a 4-20mA signal?
To accept a 4-20mA input, you must install a 500 Ohm resistor across the input signal (Wire 3) and common (Wire 1). This converts the current to a 2-10VDC signal that the MFT actuator recognizes.
Can I use this actuator for fire and smoke dampers?
No, the LMB24-MFT is a non-spring return actuator. It will remain in its last position upon loss of power. For safety applications requiring a fail-safe position, a spring-return model must be used.
What is the maximum damper size this motor can handle?
With 45 in-lb torque, it is generally rated to drive dampers up to 11 sq. ft., though you should always verify the manufacturer's torque requirements for your specific HVAC damper.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Belimo LMB24-MFT Actuator
The Belimo LMB24-MFT Actuator is a non-spring return motor designed for precise damper control in commercial HVAC systems. Delivering a steady 45 in-lb torque, this direct-coupled actuator supports a wide variety of control signals through Multi-Function Technology (MFT). It is factory-set for 2-10VDC modulation but is field-programmable to handle floating point, on/off, and PWM control. For 4-20mA logic, a 500 Ohm resistor (model ZG-R01) is required to convert the signal. Operating on 24VAC/DC, the unit features a brushless DC motor with electronic overload protection throughout its 0 to 95-degree rotation, eliminating the need for mechanical limit switches. The NEMA 2 rated housing includes a manual override button and a universal clamp compatible with 1/4 inch to 5/8 inch round shafts, ensuring seamless BAS integration for modulating dampers up to 11 square feet.
Key Benefits for Contractors- Universal Compatibility: The MFT programmable logic allows one damper actuator to replace multiple fixed-signal models, reducing truck stock.
- Reliable Performance: Brushless DC motor technology prevents stalling and ensures constant torque delivery regardless of load.
- Faster Installation: The direct-coupled design requires no crank arms or linkages, mounting directly to the drive shaft.
- High Efficiency: Extremely low power consumption (1.2W in holding mode) reduces transformer sizing requirements for building automation.
- Flexible Field Setup: Includes a reversing switch and manual disengagement button for easy damper setup and testing.
How do I wire the Belimo LMB24-MFT for a 4-20mA signal?
To accept a 4-20mA input, you must install a 500 Ohm resistor across the input signal (Wire 3) and common (Wire 1). This converts the current to a 2-10VDC signal that the MFT actuator recognizes.
Can I use this actuator for fire and smoke dampers?
No, the LMB24-MFT is a non-spring return actuator. It will remain in its last position upon loss of power. For safety applications requiring a fail-safe position, a spring-return model must be used.
What is the maximum damper size this motor can handle?
With 45 in-lb torque, it is generally rated to drive dampers up to 11 sq. ft., though you should always verify the manufacturer's torque requirements for your specific HVAC damper.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
