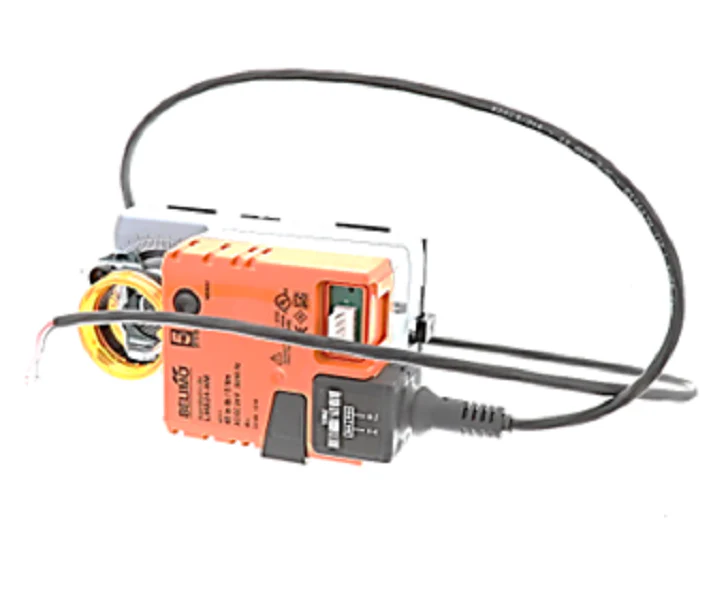

Belimo LMB24-HM Actuator
The Belimo LMB24-HM is a professional-grade damper actuator specifically engineered for the retrofit of LM24-M and LM24-10P-M units in existing VAV controllers. This non-spring return actuator delivers a robust 45 in-lb torque, providing a necessary performance upgrade from older 35 in-lb models. Operating on 24VAC/DC, it features a brushless DC motor controlled by an Application Specific Integrated Circuit (ASIC) for precise position monitoring and overload protection across its full 95° rotation. Designed as a true drop-in replacement, it utilizes a 5-pin Molex connector for control signals and a separate plenum-rated cable for power, allowing for instant commissioning without system alterations or the need for a balancer. Technical specifications include a 95-second constant runtime, NEMA 2/IP54 protection, and a low noise level of <35dB(A), making it the standard for reliable, maintenance-free high-performance air terminal operations.
Key Benefits- Direct Drop-In Replacement: Seamlessly retrofits aging LM24-M and LM24-10P-M actuators without hardware or software modifications.
- Increased Torque Capacity: Delivers 45 in-lb [5 Nm] of torque to handle demanding commercial damper applications.
- High Efficiency: Features Halomo brushless motor technology with reduced power consumption in holding mode.
- Simplified Installation: Integrated 5-pin Molex connector ensures plug-and-play connectivity with OEM VAV controllers.
- Durable Construction: UL Enclosure Type 2 and NEMA 2 rated for reliable use in air plenums and commercial HVAC environments.
- Which models does the Belimo LMB24-HM replace? It is the primary technical replacement for the legacy Belimo LM24-M and LM24-10P-M series.
- Does the actuator require limit switches? No, it features internal electronic overload protection and stops automatically when it reaches the damper or actuator end position.
- Can I manually adjust the damper position? Yes, the unit includes an external push button for manual gear disengagement and override.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
