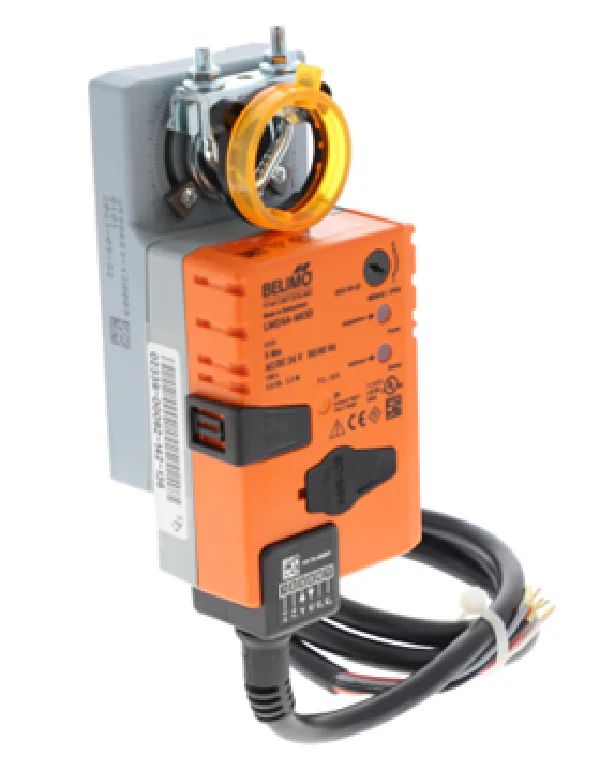

Belimo LM24A-MOD Actuator
The Belimo LM24A-MOD is a high-performance 24V modulating damper actuator designed for precise air flow control in HVAC systems. Delivering 45 in-lb (5 Nm) of torque, this non-spring return actuator provides proportional control via a 2 to 10 VDC signal or 4 to 20 mA input with a 500 ? resistor. Engineered for damper areas up to approximately 11 sq. ft., the unit features a brushless DC motor for consistent run times and reduced maintenance. The MFT (Multi-Function Technology) allows for field adjustment of control signals and feedback, ensuring seamless integration with Building Automation Systems (BAS). Its universal spindle clamp accommodates various shaft sizes, making it a reliable choice for direct-coupled mounting on both round and square shafts. This HVAC actuator maintains a IP54 rating, providing durability in demanding mechanical rooms while operating at a low power consumption of 2W.
- Universal Compatibility: Works with all standard 2-10 VDC or 4-20 mA control signals for versatile system integration.
- Precise Positioning: Brushless DC motor technology ensures accurate positioning without the risk of motor burnout.
- Simple Installation: Direct-couple mounting and a standard 1-meter cable reduce field labor and commissioning time.
- Manual Override: External push-button manual gear release allows for easy commissioning and emergency adjustments.
- Reliable Performance: Rated for over 100,000 partial cycles, providing long-term stability in modulating applications.
Common Questions
How do I change the direction of rotation on the LM24A-MOD?
The direction of rotation can be toggled using the 0/1 switch located on the actuator housing to match the damper's opening direction.
Can this actuator be used in a failsafe application?
No, the Belimo LM24A-MOD is a non-spring return actuator. For failsafe requirements, a spring-return model or an electronic fail-safe (EFS) unit is required.
What is the maximum damper size this unit can drive?
This actuator is rated for dampers up to 11 square feet, though actual capacity depends on the damper's torque requirements and seal friction.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
