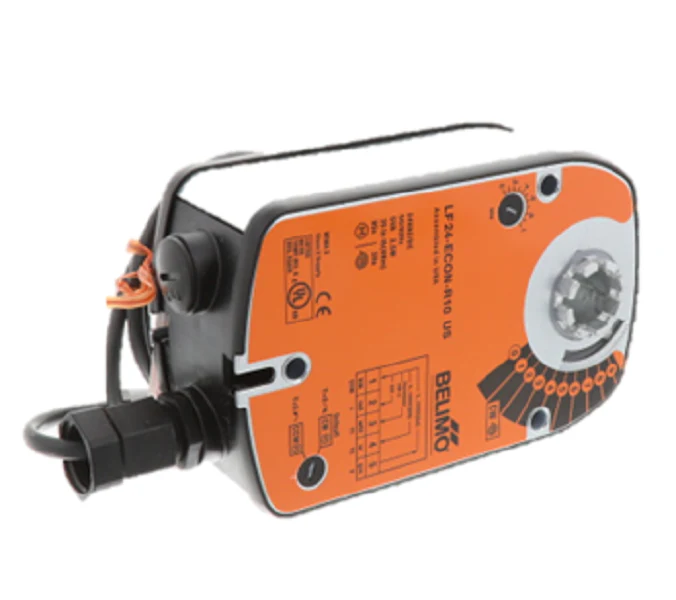

Belimo LF24-ECON-R10 Actuator
The Belimo LF24-ECON-R10 is a specialized spring return actuator engineered specifically for economizer systems and damper control in HVACR applications. Operating on a 24VAC/DC power supply, this motor delivers 35 in-lb of torque, making it a reliable solution for small to medium-sized dampers requiring fail-safe positioning. This specific model features an integrated 10k Ohm Thermistor for precise temperature feedback, streamlining the interface between the actuator and the economizer controller. Designed for high-duty cycles, the LF24-ECON-R10 ensures consistent outdoor air intake control to optimize mechanical cooling and indoor air quality. The mechanical spring return fail-safe ensures the damper returns to a pre-determined position during power loss, protecting equipment and maintaining system integrity. Contractors favor this unit for its durability in demanding environments and its simplified universal spindle clamp design, which reduces installation time on various shaft sizes.
- Fail-Safe Logic: Mechanical spring return ensures 100% damper closure or opening upon power loss for system safety.
- Integrated Sensing: Features a built-in 10k Ohm NTC thermistor to eliminate the need for separate temperature sensor mounting.
- Versatile Power: Compatible with both 24V AC and DC circuits, accommodating diverse field power requirements.
- Optimized Torque: Reliable 4 Nm (35 in-lb) output suitable for controlling economizer dampers up to approximately 8.5 sq. ft.
- Brushless DC Motor: Controlled by an application-specific integrated circuit (ASIC) for overload protection and constant torque.
Common Questions
What is the purpose of the 10k Ohm thermistor in the Belimo LF24-ECON-R10?
The integrated thermistor provides real-time temperature data directly to the economizer controller, allowing for automated adjustments based on outdoor or mixed air conditions without external sensors.
Can this actuator be used in manual override mode?
Yes, the unit features a manual crank that allows technicians to lock the damper in any position for commissioning or maintenance, which is automatically disengaged once power is applied.
How does the LF24-ECON-R10 handle end-of-rotation stops?
This actuator is electronically protected against overload and does not require limit switches; it stops automatically at the end of its stroke or whenever it encounters an obstruction.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
