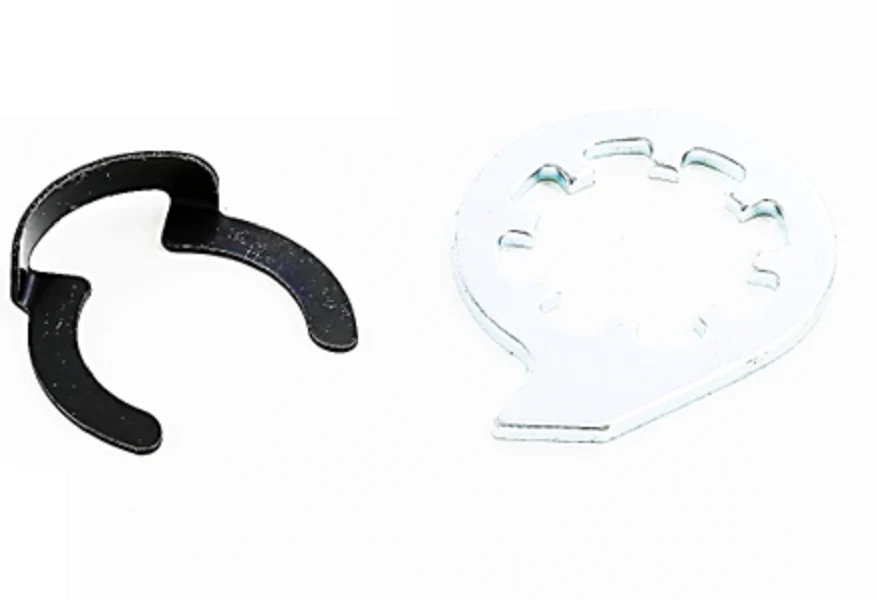

Belimo IND-AF2 Indicator
Ensure precise mechanical feedback in your HVACR systems with the Belimo IND-AF2, a dedicated damper position indicator engineered for the rugged demands of field service. Designed as a direct-fit accessory for the Belimo AF series and NF series spring-return actuators, this component is essential for installations where the actuator is mounted on a short shaft, obscuring the built-in graduation. By utilizing the IND-AF2, technicians gain a clear, external visual reference of the damper’s angular rotation, ranging from 0° to 95°. This mechanical position indicator is high-strength and easily integrates with the universal clamp assemblies, including the K4 and K4-2 jackshaft clamps. Whether you are performing a Belimo retrofit or a new damper actuator installation, the IND-AF2 provides the visual confirmation needed to verify proper close-off and flow control without dismantling the linkage. Maintain system integrity and streamline troubleshooting with this industry-standard HVAC actuator accessory.
Key Benefits- Universal Compatibility: Seamlessly attaches to all Belimo AF and NF series actuators for consistent monitoring across different torque ratings.
- Short Shaft Support: Engineered specifically for short shaft installations where the actuator's internal indicator is not visible to the technician.
- Rugged Durability: Built to withstand the vibration and temperature fluctuations common in industrial air handling units.
- Enhanced Visibility: Features clear markings for 0° to 95° rotation, allowing for immediate verification of fail-safe and operating positions.
- Does the IND-AF2 work with the newer AFB and NFB models? Detailed technical documentation suggests the IND-AF2 is optimized for the original AF/NF series; for AFB/NFB models, the IND-AFB is typically the specified indicator.
- Can this be used for rotation limiting? While the IND-AF2 provides visual feedback, it is often used in tandem with the ZDB-AF2 angle of rotation limiter for physical stroke adjustment.
- Is the indicator required for all jackshaft mounts? It is highly recommended for jackshaft applications to ensure the technician can confirm the actuator's true position after the 10mm nuts are torqued.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
