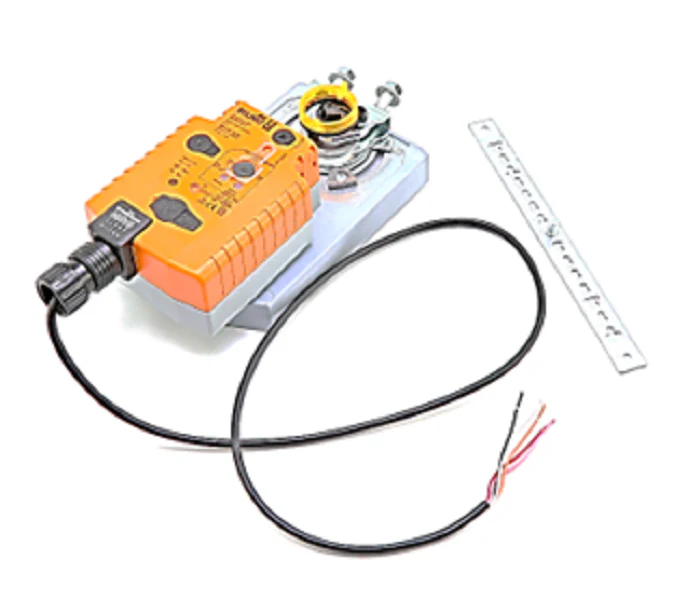

Belimo GKB24-MFT Actuator
The Belimo GKB24-MFT Actuator is a high-torque electronic fail-safe actuator designed for precise control in demanding HVAC applications. Operating on a 24V AC/DC power supply, this unit delivers 360 in-lb of torque, making it suitable for large control dampers and valve assemblies. Utilizing Multi-Function Technology (MFT), the actuator is fully programmable, allowing technicians to field-configure control signals including 2-10VDC, 4-20mA, or pulse width modulation. The integrated brushless DC motor is controlled by an Application Specific Integrated Circuit (ASIC) to ensure constant torque and overload protection throughout its 95-degree rotation. In the event of a power loss, the capacitive fail-safe mechanism provides reliable positioning to the home state. This direct-coupled actuator features a universal clamp for easy installation on damper shafts without the need for additional linkages, ensuring optimized performance in complex air handling units and VAV systems.
Key Benefits
- Configurable Control: MFT allows for custom scaling of input signals and feedback, providing versatility for various BMS integration requirements.
- Fail-Safe Reliability: Uses internal capacitors to ensure the actuator returns to a designated safety position during power outages.
- High Torque Output: Rated at 360 in-lb to handle high-static pressure dampers and large-diameter valves efficiently.
- Precise Positioning: Microprocessor-controlled motor ensures accurate tracking and modulation for better climate control accuracy.
- Simple Installation: The non-spring return design with electronic fail-safe reduces size and weight compared to traditional mechanical spring systems.
Common Questions
Can the fail-safe direction be changed on the GKB24-MFT?
Yes, the fail-safe direction (Pre-set to 0) can be adjusted using the Belimo assistant app or ZTH US handheld tool via the MFT programming interface.
What is the typical runtime for this actuator?
The standard motor runtime is 150 seconds, though this is field-adjustable through programming to match specific sequence of operations.
Does this actuator support 4-20mA control signals?
Yes, while the default is often set to 2-10VDC, the Belimo GKB24-MFT can be configured for a 4-20mA input by using a 500? resistor or through MFT software settings.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
