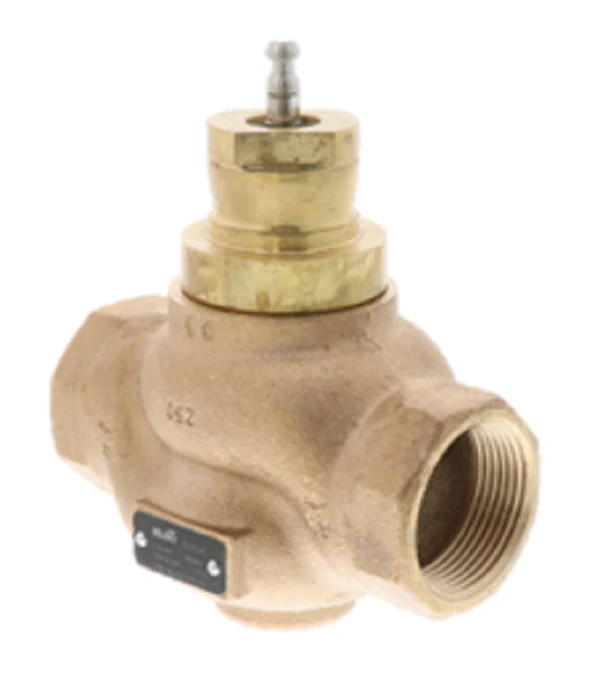

Belimo G232S-M Valve
The Belimo G232S-M is a precision-engineered 1 1/4 inch 2-way globe valve designed for demanding chilled or hot water applications. This valve features a 20 Cv flow coefficient and utilizes a modified equal percentage flow characteristic to ensure stable modulating control in HVAC systems. Built with a rugged bronze body and stainless steel trim, the G232S-M is rated for ANSI Class 250, providing high-pressure performance and durability against corrosive media. The stem up to open configuration allows for seamless integration with compatible Belimo actuators, such as the LV or SV series, maintaining tight shut-off and precise positioning. With its NPT threaded end connections, this mixing or diverting valve ensures a reliable seal and straightforward installation for contractors managing large-scale hydronic terminal units or air handling systems.
- 20 Cv Capacity: Optimized for precise flow regulation in 1.25-inch hydronic piping systems.
- Stainless Steel Trim: Enhances longevity and resists erosion compared to standard brass internals.
- ANSI Class 250 Rating: Designed to handle high static pressures in commercial building envelopes.
- Modified Equal Percentage: Delivers linear heat output for superior coil control and energy efficiency.
- NPT Connections: Standard American national pipe threads facilitate compatibility with existing iron or copper headers.
Common Questions
What actuators are compatible with the Belimo G232S-M?
This globe valve is designed to pair with Belimo LV and SV series actuators. Verification of the required force and control signal (proportional vs. on/off) is recommended for your specific application.
Can this valve be used for steam applications?
The G232S-M is primarily rated for water and glycol solutions. For high-pressure steam applications, verify the specific temperature limits and consult technical documentation regarding the packing material suitability.
What is the maximum fluid temperature for this bronze globe valve?
This series typically handles fluid temperatures ranging from 20°F to 250°F (-7°C to 120°C), making it suitable for most hydronic heating and cooling loops.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
