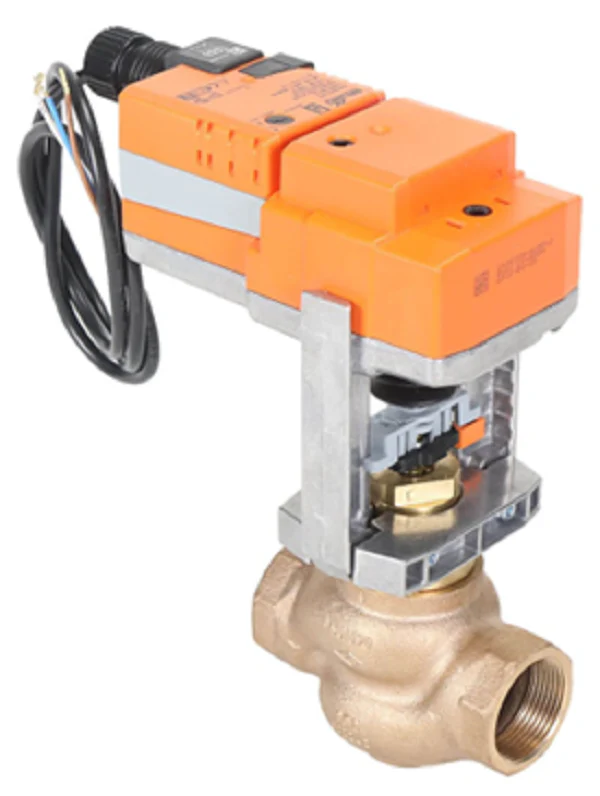

Belimo G232B-M+LVX120-3 Valve Assembly
For your next high-demand hydronic or steam application, look no further than the Belimo G232B-M+LVX120-3 Valve Assembly. This 1 1/4-inch unit features an ANSI Class 250 bronze body with premium brass trim, specifically engineered to handle chilled water, hot water, or low-pressure steam up to 35 psi. The valve is designed with a modified equal percentage flow characteristic to ensure precise modulation and linear heat output in complex HVACR circuits. With a robust 20 Cv rating, it provides the high-capacity throughput required for commercial terminal units and air handlers.
The assembly is powered by the LVX120-3 non-spring return actuator, operating on standard 120Vac power. This dedicated floating control motor delivers 100 lbf of linear force, ensuring reliable positioning and a tight ANSI Class VI shut-off. Field installation is simplified via standard NPT female connections. Whether you are performing a retrofit or a new build, this Belimo globe valve assembly offers the thermal stability and 100:1 rangeability that veteran contractors demand for critical temperature control.
- Precision Control: The modified equal percentage flow characteristic provides the optimal tuning required for hydronic coils.
- High-Pressure Durability: Rated for ANSI Class 250, supporting up to 400 psi at temperatures below 150°F.
- Steam Compatible: Capable of handling inlet steam pressures up to 35 psi, making it versatile for diverse mechanical rooms.
- Industrial Build: Features a rugged bronze body, brass plug, and stainless steel stem for long-term service life in harsh environments.
Common Questions
Can I use this valve for steam applications?
Yes, the G232B-M is rated for hot water, chilled water, and low-pressure steam applications, provided inlet pressure does not exceed 35 psi.
Is the actuator fail-safe?
No, the LVX120-3 is a non-spring return (NSR) actuator, meaning it will maintain its last position upon loss of power.
What type of control signal does this assembly require?
This assembly uses a 120Vac floating (3-point) control signal, which is typical for many building automation systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $672.86
-65%$672.86
$235.50Belimo G232B-M+LVX120-3 Valve Assembly
