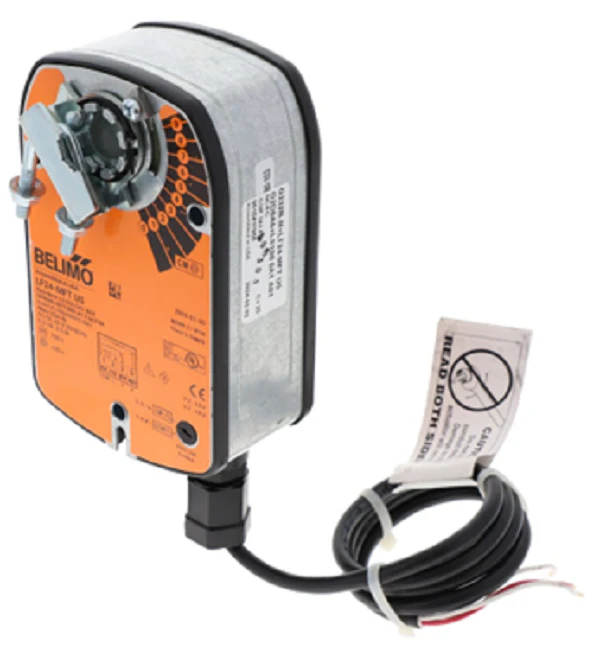

Belimo G232B-M+LF24-MFT Actuator
The Belimo G232B-M+LF24-MFT Actuator assembly combines a 1.25-inch 2-way globe valve with a Multi-Function Technology (MFT) spring return actuator, delivering a 20 Cv rating for precise flow regulation. Designed for HVAC hydronic systems, this unit facilitates proportional control of chilled or hot water and steam applications up to 35 psi. The LF24-MFT actuator provides 35 in-lb of torque and operates on a 24V AC/DC power supply, allowing for field-programmable control signals including 2-10 VDC, 4-20 mA, or pulse width modulation. The fail-safe spring return mechanism ensures the valve moves to a defined safety position during power loss. Built with a bronze body and stainless steel trim, the G232B-M valve offers high close-off pressure capabilities and linear flow characteristics, making it a reliable solution for demanding modulating control valve installations requiring exact thermal management and long-term durability in commercial mechanical rooms.
- Multi-Function Technology: Enables field-customization of input signals, feedback, and running times for versatile control valve actuator integration.
- Spring Return Reliability: Integrated mechanical spring ensures fail-safe operation in critical heating or cooling loops.
- High Close-off Pressure: Engineered to maintain tight shut-off against high differential pressures, preventing leakage in hydronic piping systems.
- NEMA 2 Protection: The rugged housing protects internal components from condensation and environmental debris common in mechanical rooms.
Common Questions
How do I configure the control signal on a Belimo MFT actuator?
The Belimo LF24-MFT can be programmed using the Belimo PC Tool or ZTH US handheld device to adjust parameters like operating range, position feedback, and torque limit.
What is the maximum fluid temperature for the G232B-M globe valve?
This 1.25 inch globe valve is typically rated for water temperatures between 20°F and 250°F, depending on the specific steam or glycol concentrations used in the system.
Can this actuator be mounted in any orientation?
While the actuator can be mounted in several positions, it should never be installed upside down to prevent moisture from entering the motor housing via the valve stem.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,204.31
-65%$1,204.31
$421.51Belimo G232B-M+LF24-MFT Actuator
The Belimo G232B-M+LF24-MFT Actuator assembly combines a 1.25-inch 2-way globe valve with a Multi-Function Technology (MFT) spring return actuator, delivering a 20 Cv rating for precise flow regulation. Designed for HVAC hydronic systems, this unit facilitates proportional control of chilled or hot water and steam applications up to 35 psi. The LF24-MFT actuator provides 35 in-lb of torque and operates on a 24V AC/DC power supply, allowing for field-programmable control signals including 2-10 VDC, 4-20 mA, or pulse width modulation. The fail-safe spring return mechanism ensures the valve moves to a defined safety position during power loss. Built with a bronze body and stainless steel trim, the G232B-M valve offers high close-off pressure capabilities and linear flow characteristics, making it a reliable solution for demanding modulating control valve installations requiring exact thermal management and long-term durability in commercial mechanical rooms.
- Multi-Function Technology: Enables field-customization of input signals, feedback, and running times for versatile control valve actuator integration.
- Spring Return Reliability: Integrated mechanical spring ensures fail-safe operation in critical heating or cooling loops.
- High Close-off Pressure: Engineered to maintain tight shut-off against high differential pressures, preventing leakage in hydronic piping systems.
- NEMA 2 Protection: The rugged housing protects internal components from condensation and environmental debris common in mechanical rooms.
Common Questions
How do I configure the control signal on a Belimo MFT actuator?
The Belimo LF24-MFT can be programmed using the Belimo PC Tool or ZTH US handheld device to adjust parameters like operating range, position feedback, and torque limit.
What is the maximum fluid temperature for the G232B-M globe valve?
This 1.25 inch globe valve is typically rated for water temperatures between 20°F and 250°F, depending on the specific steam or glycol concentrations used in the system.
Can this actuator be mounted in any orientation?
While the actuator can be mounted in several positions, it should never be installed upside down to prevent moisture from entering the motor housing via the valve stem.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
