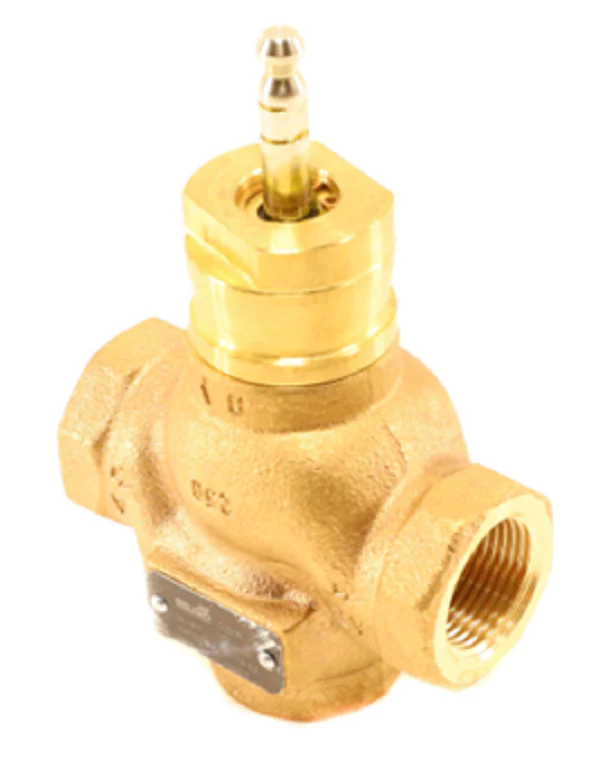

Belimo G220B-J Valve
The Belimo G220B-J is a high-performance 2-way globe valve engineered for precise control in chilled water, hot water, and steam applications. With a 3/4 inch NPT internal thread connection and a 5.5 Cv flow coefficient, this valve is built for ANSI Class 250 service, supporting a body pressure rating of up to 400 psi at temperatures below 150°F. The bronze body and brass trim provide the durability required for demanding HVACR environments, while the modified equal percentage flow characteristic ensures accurate modulation across a 100:1 rangeability. Designed as a stem up to open configuration, it is compatible with LV and LF series actuators, making it a reliable choice for contractors looking to maintain tight system control with ANSI Class VI leakage ratings.
Key Benefits:- High Close-Off Pressure: Achieve superior control in high-static systems with a pressure-compensated design.
- Precision Modulation: The modified equal percentage curve and 100:1 rangeability prevent hunting and provide stable flow.
- Steam Rated: Robust internal components handle temperature ranges from 20°F to 280°F, suitable for low-pressure steam up to 35 psi.
- Low Leakage: ANSI Class VI bubble-tight shutoff minimizes energy loss and improves system efficiency.
- Universal Compatibility: Standard 3/4" NPT fittings allow for straightforward integration into existing hydronic piping.
- What actuators are compatible with the Belimo G220B-J? This 3/4" globe valve is designed to work seamlessly with Belimo LVB(X) non-fail-safe and LF spring return actuators.
- Can this valve be used for steam applications? Yes, the Belimo G220B-J is rated for steam up to 35 psi inlet pressure and 20 psi differential pressure.
- Does the G220B-J require a specific mounting orientation? For optimal performance, the valve should be mounted with the actuator above the horizontal plane to prevent moisture buildup in the motor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $211.48
-65%$211.48
$74.02Belimo G220B-J Valve
The Belimo G220B-J is a high-performance 2-way globe valve engineered for precise control in chilled water, hot water, and steam applications. With a 3/4 inch NPT internal thread connection and a 5.5 Cv flow coefficient, this valve is built for ANSI Class 250 service, supporting a body pressure rating of up to 400 psi at temperatures below 150°F. The bronze body and brass trim provide the durability required for demanding HVACR environments, while the modified equal percentage flow characteristic ensures accurate modulation across a 100:1 rangeability. Designed as a stem up to open configuration, it is compatible with LV and LF series actuators, making it a reliable choice for contractors looking to maintain tight system control with ANSI Class VI leakage ratings.
Key Benefits:- High Close-Off Pressure: Achieve superior control in high-static systems with a pressure-compensated design.
- Precision Modulation: The modified equal percentage curve and 100:1 rangeability prevent hunting and provide stable flow.
- Steam Rated: Robust internal components handle temperature ranges from 20°F to 280°F, suitable for low-pressure steam up to 35 psi.
- Low Leakage: ANSI Class VI bubble-tight shutoff minimizes energy loss and improves system efficiency.
- Universal Compatibility: Standard 3/4" NPT fittings allow for straightforward integration into existing hydronic piping.
- What actuators are compatible with the Belimo G220B-J? This 3/4" globe valve is designed to work seamlessly with Belimo LVB(X) non-fail-safe and LF spring return actuators.
- Can this valve be used for steam applications? Yes, the Belimo G220B-J is rated for steam up to 35 psi inlet pressure and 20 psi differential pressure.
- Does the G220B-J require a specific mounting orientation? For optimal performance, the valve should be mounted with the actuator above the horizontal plane to prevent moisture buildup in the motor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
