Belimo FGVL+EVX24-MFT Actuator

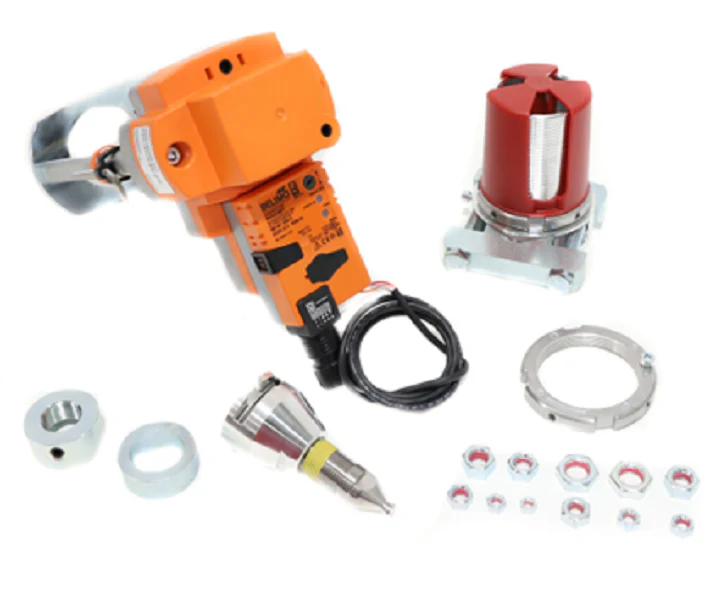

The Belimo FGVL+EVX24-MFT is a heavy-duty retrofit solution combining a universal flanged globe valve linkage with a high-torque non-spring return actuator. Engineered for 2.5-inch to 6-inch flanged globe valves, this assembly delivers 560 lbf (2500 N) of force, ensuring reliable close-off in demanding hydronic and steam applications. Utilizing Multi-Function Technology (MFT), the EVX24-MFT actuator is fully programmable for control signals (2-10VDC default, floating point, or on/off) and feedback, providing maximum flexibility for system integration. The FGVL linkage features a cast aluminum base and a 316 stainless steel stem, designed to fit competitor bonnets up to 2.3 inches in diameter. With a 2-inch stroke capacity and a 24V AC/DC power requirement, this globe valve actuator assembly is a technician’s choice for field-upfitting existing valves without system downtime. The MFT programmable logic allows for precise flow characterization and adapts easily to diverse building automation requirements.
Key Benefits- Universal Compatibility: The FGVL linkage fits most major manufacturers' 2.5" to 6" flanged globe valves, reducing inventory needs for retrofit projects.
- High Close-Off Force: Provides 560 lbf of linear force to handle high differential pressures in large-scale HVAC systems.
- Advanced Control Flexibility: Multi-Function Technology allows field customization of input signals, feedback, and running time (90-150 seconds).
- Robust Construction: Features 316 stainless steel components and an IP54-rated housing for durability in mechanical room environments.
- Simplified Installation: The manual override hex crank and visual position indicator allow for easy setup and commissioning without power.
What valves are compatible with the FGVL linkage?
The Belimo FGVL+EVX24-MFT is designed as a universal retrofit kit. It typically fits 2-1/2" to 6" flanged globe valves from brands like Honeywell, Johnson Controls, and Siemens, provided the bonnet diameter does not exceed 2.3 inches.
Can I change the control signal in the field?
Yes. Because this unit features Multi-Function Technology, you can use a Belimo PC Tool or ZTH US handheld tool to reprogram the EVX24-MFT for different control signals, including 4-20mA (with a resistor) or PWM.
Is this a fail-safe actuator?
No, this specific model is a non-spring return actuator. It will maintain its last position upon loss of power unless an external backup system is utilized.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,185.72
-65%$1,185.72
$415.00Belimo FGVL+EVX24-MFT Actuator
The Belimo FGVL+EVX24-MFT is a heavy-duty retrofit solution combining a universal flanged globe valve linkage with a high-torque non-spring return actuator. Engineered for 2.5-inch to 6-inch flanged globe valves, this assembly delivers 560 lbf (2500 N) of force, ensuring reliable close-off in demanding hydronic and steam applications. Utilizing Multi-Function Technology (MFT), the EVX24-MFT actuator is fully programmable for control signals (2-10VDC default, floating point, or on/off) and feedback, providing maximum flexibility for system integration. The FGVL linkage features a cast aluminum base and a 316 stainless steel stem, designed to fit competitor bonnets up to 2.3 inches in diameter. With a 2-inch stroke capacity and a 24V AC/DC power requirement, this globe valve actuator assembly is a technician’s choice for field-upfitting existing valves without system downtime. The MFT programmable logic allows for precise flow characterization and adapts easily to diverse building automation requirements.
Key Benefits- Universal Compatibility: The FGVL linkage fits most major manufacturers' 2.5" to 6" flanged globe valves, reducing inventory needs for retrofit projects.
- High Close-Off Force: Provides 560 lbf of linear force to handle high differential pressures in large-scale HVAC systems.
- Advanced Control Flexibility: Multi-Function Technology allows field customization of input signals, feedback, and running time (90-150 seconds).
- Robust Construction: Features 316 stainless steel components and an IP54-rated housing for durability in mechanical room environments.
- Simplified Installation: The manual override hex crank and visual position indicator allow for easy setup and commissioning without power.
What valves are compatible with the FGVL linkage?
The Belimo FGVL+EVX24-MFT is designed as a universal retrofit kit. It typically fits 2-1/2" to 6" flanged globe valves from brands like Honeywell, Johnson Controls, and Siemens, provided the bonnet diameter does not exceed 2.3 inches.
Can I change the control signal in the field?
Yes. Because this unit features Multi-Function Technology, you can use a Belimo PC Tool or ZTH US handheld tool to reprogram the EVX24-MFT for different control signals, including 4-20mA (with a resistor) or PWM.
Is this a fail-safe actuator?
No, this specific model is a non-spring return actuator. It will maintain its last position upon loss of power unless an external backup system is utilized.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
