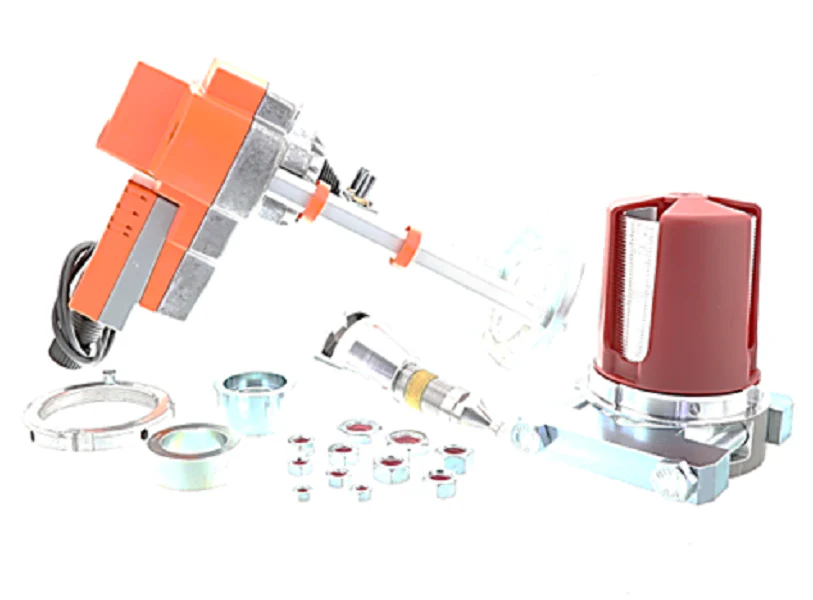

Belimo FGVL+EVB24-SR Actuator
The Belimo FGVL+EVB24-SR is an industrial-grade non-spring return linear actuator assembly specifically designed for precise control in HVAC water applications. This 24V proportional actuator provides a 2-10VDC control signal range and delivers 1125 lbf (5000 N) of force, ensuring reliable modulation of Belimo globe valves. The integrated EVB24-SR linkage simplifies field installation and ensures proper alignment between the actuator and valve stem. Engineered for high-performance hydronic systems, it features manual override capabilities and automatic stroke adaptation to maintain optimal flow control. Its brushless DC motor technology provides constant torque and speed regardless of load, while the electronic stall protection prevents motor burnout during unexpected blockages. This HVAC valve actuator is ideal for demanding commercial environments where durability and high close-off pressures are critical requirements for system efficiency and stability.
Key Benefits for Technicians:- Electronic Stall Protection: Protects the motor from damage without the need for limit switches.
- Proportional Control: Utilizes a 2-10VDC control signal for high-accuracy positioning in modulating loops.
- High Close-off Force: Delivers 1125 lbf of force to handle significant differential pressures in globe valve applications.
- Universal Compatibility: Designed for seamless integration with Belimo FGVL linkages and standard globe valve bodies.
- Maintenance-Free Design: Brushless DC motor eliminates the need for routine maintenance or internal lubrication.
Is this actuator spring-return or non-spring return?
The EVB24-SR is a non-spring return actuator, meaning it will maintain its last position upon loss of power unless manually adjusted.
What control signals does the FGVL+EVB24-SR support?
It is primarily used with a 2-10VDC proportional signal, though it can be configured for 4-20mA applications with an external resistor.
Does this assembly include the linkage for globe valves?
Yes, this specific model includes the integrated linkage required to mount the actuator directly to compatible globe valves.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
