Belimo FGVL+EVB24-MFT Actuator

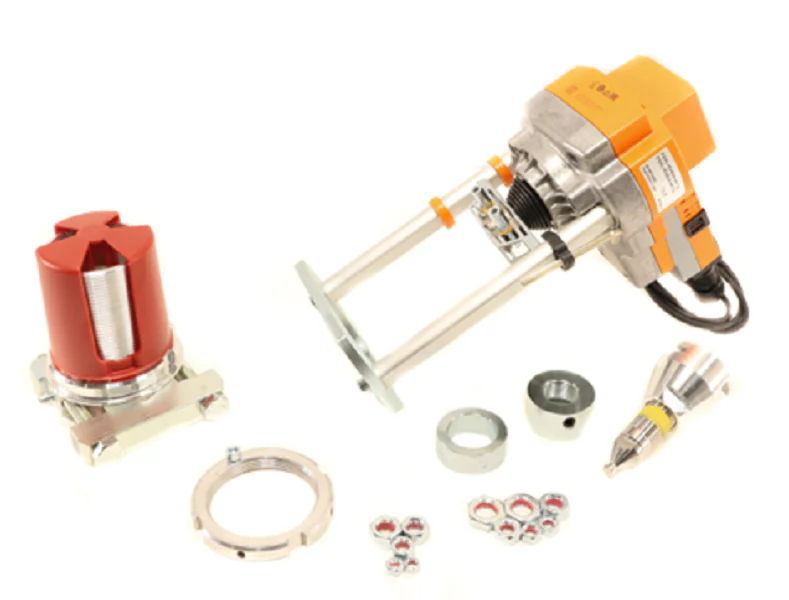

The Belimo FGVL+EVB24-MFT is a precision-engineered 24V non-spring return linear actuator combined with a robust LVGV linkage, designed for the accurate control of globe valves in demanding hydronic systems. Featuring Multi-Function Technology (MFT), this assembly allows for field-adjustable parameters including control input, position feedback, and running time, ensuring seamless integration with diverse Building Automation Systems (BAS). With a force output of 560 lbs (2500 N), the EVB24-MFT provides reliable modulation for high-pressure close-off requirements. The proportional control signal (2-10 VDC or 4-20 mA) ensures fine-tuned valve positioning, optimizing flow rates and system efficiency. This HVAC valve actuator utilizes a brushless DC motor for consistent performance and electronic stall protection to prevent motor burnout. The assembly is specifically rated for NEMA 2/IP54 enclosures, making it suitable for standard mechanical room environments where fail-in-place functionality is required.
- Versatile MFT Programming: Allows for custom configurations of input signals and feedback, providing system interoperability across various controller platforms.
- High Torque/Force Capacity: Delivering 2500 N of linear force, the EVB series actuator manages large CV globe valves even under high differential pressures.
- Simplified Installation: The inclusive LVGV/FGVL linkage facilitates direct mounting to compatible valve bodies, reducing field labor and alignment errors.
- Electronic Overload Protection: Eliminates the need for limit switches by automatically sensing end-of-stroke, extending the service life of internal mechanical components.
- Manual Override: Features a manual crank for emergency positioning and system commissioning without power.
Common Technical Inquiries
How do I field-configure the MFT signal on this Belimo unit?
The MFT parameters can be adjusted using the Belimo PC Tool or the ZTH US handheld module to change the 2-10 VDC default to a 4-20 mA or 0.5-10 VDC control signal.
What is the typical stroke length for the FGVL linkage?
The FGVL linkage is designed to accommodate standard globe valve strokes up to 2 inches (50mm), providing linear movement translated from the EVB24-MFT drive.
Does this actuator require a specific transformer sizing?
Yes, ensure the 24VAC/DC power supply is sized correctly; the EVB24-MFT typically requires 5 VA for sizing transformers, accounting for peak current draw during motor operation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,185.72
-65%$1,185.72
$415.00Belimo FGVL+EVB24-MFT Actuator
The Belimo FGVL+EVB24-MFT is a precision-engineered 24V non-spring return linear actuator combined with a robust LVGV linkage, designed for the accurate control of globe valves in demanding hydronic systems. Featuring Multi-Function Technology (MFT), this assembly allows for field-adjustable parameters including control input, position feedback, and running time, ensuring seamless integration with diverse Building Automation Systems (BAS). With a force output of 560 lbs (2500 N), the EVB24-MFT provides reliable modulation for high-pressure close-off requirements. The proportional control signal (2-10 VDC or 4-20 mA) ensures fine-tuned valve positioning, optimizing flow rates and system efficiency. This HVAC valve actuator utilizes a brushless DC motor for consistent performance and electronic stall protection to prevent motor burnout. The assembly is specifically rated for NEMA 2/IP54 enclosures, making it suitable for standard mechanical room environments where fail-in-place functionality is required.
- Versatile MFT Programming: Allows for custom configurations of input signals and feedback, providing system interoperability across various controller platforms.
- High Torque/Force Capacity: Delivering 2500 N of linear force, the EVB series actuator manages large CV globe valves even under high differential pressures.
- Simplified Installation: The inclusive LVGV/FGVL linkage facilitates direct mounting to compatible valve bodies, reducing field labor and alignment errors.
- Electronic Overload Protection: Eliminates the need for limit switches by automatically sensing end-of-stroke, extending the service life of internal mechanical components.
- Manual Override: Features a manual crank for emergency positioning and system commissioning without power.
Common Technical Inquiries
How do I field-configure the MFT signal on this Belimo unit?
The MFT parameters can be adjusted using the Belimo PC Tool or the ZTH US handheld module to change the 2-10 VDC default to a 4-20 mA or 0.5-10 VDC control signal.
What is the typical stroke length for the FGVL linkage?
The FGVL linkage is designed to accommodate standard globe valve strokes up to 2 inches (50mm), providing linear movement translated from the EVB24-MFT drive.
Does this actuator require a specific transformer sizing?
Yes, ensure the 24VAC/DC power supply is sized correctly; the EVB24-MFT typically requires 5 VA for sizing transformers, accounting for peak current draw during motor operation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
