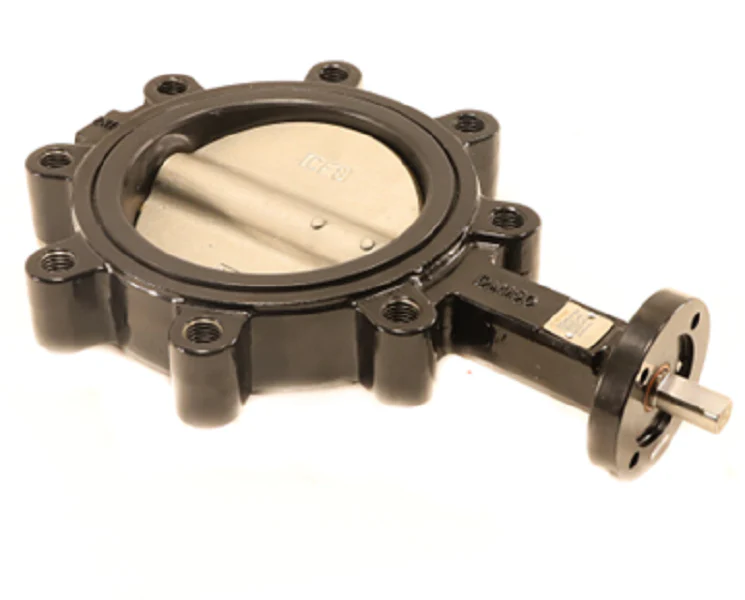

Belimo F6150HDU Valve Assembly
The Belimo F6150HDU is a heavy-duty 6-inch 2-way butterfly valve engineered for high-performance HVAC and industrial flow control applications. Designed with a ductile iron body and a 304 stainless steel disc, this assembly provides exceptional durability and corrosion resistance when regulating chilled water, hot water, or 50% glycol solutions. With a massive Cv of 1579 and a Close-Off Pressure (COP) of 50 psi, the F6150HDU ensures precise flow modulation and reliable bubble-tight shut-off. The EPDM seat manages fluid temperatures from -22°F to 250°F, making it a versatile choice for large-scale hydronic systems. This industrial butterfly valve features a standard ANSI Class 125/150 lug pattern for straightforward installation between flanges. Contractors rely on this resilient seated valve for its low torque requirements and compatibility with high-torque Belimo actuators, ensuring long-term operational stability in demanding mechanical rooms.
Key Benefits- Ductile iron construction with a 304 stainless steel disc ensures maximum structural integrity.
- High low-torque EPDM seat design reduces actuator stress and extends service life.
- Large 1579 Cv rating allows for high-capacity flow with minimal pressure drop.
- Compatible with Belimo SY, PR, and GK series actuators for flexible control configurations.
- Bubble-tight shut-off prevents leakage and improves overall system efficiency.
What is the maximum fluid temperature for the F6150HDU?
This valve is rated for fluid temperatures ranging from -22°F to 250°F (-30°C to 120°C).
Can this valve be used for steam applications?
The F6150HDU is designed for water and glycol solutions; it is not recommended for high-pressure steam service.
What flange pattern does this valve use?
It utilizes a standard ANSI Class 125/150 lug bolt pattern for easy integration into existing piping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
