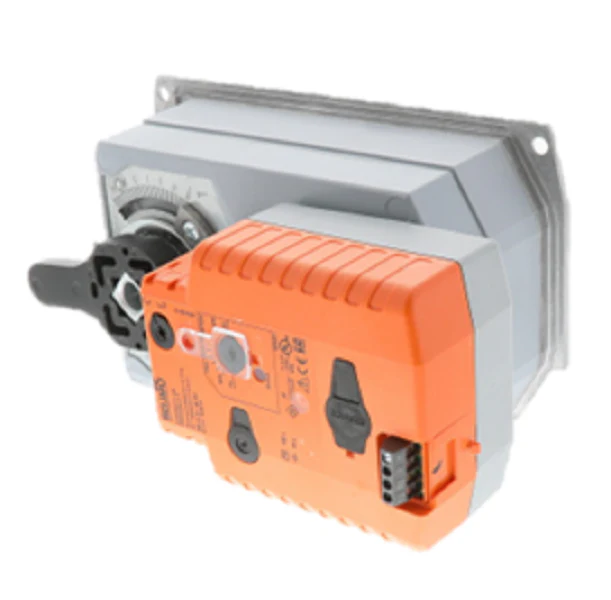

Belimo DKRX24-3-T Actuator
The Belimo DKRX24-3-T is a high-performance non-spring return rotary actuator designed for precise control in HVAC applications. Operating on a 24V AC/DC power supply, this unit provides on/off or 3-point floating control, making it a versatile choice for dampering and valve automation. It delivers a robust 133 in-lb [15 Nm] torque output, ensuring reliable movement of air dampers and ball valves even in high-pressure installations. Engineered with ConfigAct technology, the DKRX24-3-T facilitates easy field parameterization for specific runtime and torque requirements. The unit features terminal strip connections for streamlined wiring and a manual override button for emergency adjustments. Its brushless DC motor ensures consistent timing and eliminates the risk of motor burnout due to stalls. Contractors frequently specify this NEMA 2 (IP54) rated actuator for systems requiring low power consumption and high positional accuracy in demanding commercial environments.
Key Benefits- Configurable Performance: Field-adjustable parameters allow for precise control over stroke and timing via ConfigAct logic.
- High Torque Density: Provides 133 in-lb of torque in a compact housing suitable for tight mechanical spaces.
- Reliable Brushless Motor: Overload-protected brushless DC motor increases service life and prevents failure during mechanical obstructions.
- Flexible Control Options: Supports both on/off and floating point control signals for compatibility with various BMS controllers.
- Simplified Installation: Terminal strip electrical connections and a universal 5/8" to 3/4" shaft clamp reduce labor time on the job site.
What is the typical runtime for the DKRX24-3-T?
Standard runtime is 150 seconds, though it can be adjusted through programming depending on the specific application requirements.
Can this actuator be used in exterior applications?
The unit is rated NEMA 2 / IP54, meaning it is protected against lint, dust, and light splashing water; however, it requires a weather shield for direct outdoor exposure.
Does it include an auxiliary switch?
The standard "T" model features terminal strip connections but does not include integrated auxiliary switches; these must be ordered as add-on accessories if end-point verification is required.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
