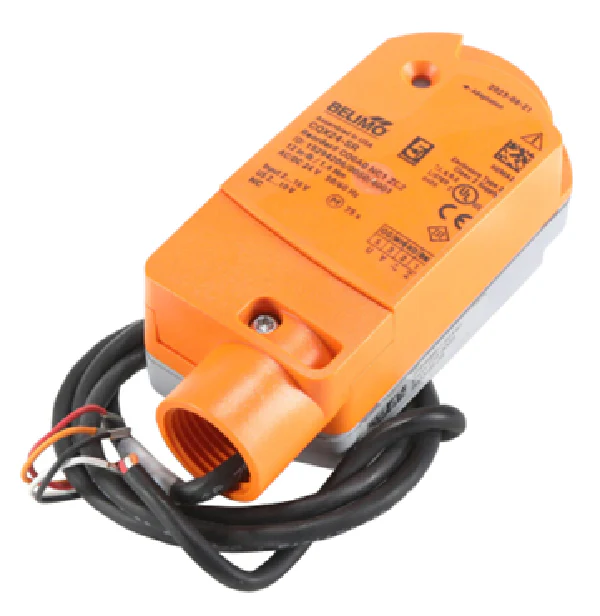

Belimo CQX24-SR Actuator
The Belimo CQX24-SR Actuator is a robust, non-spring return solution designed for precise control in high-performance hydronic systems. Operating on 24VAC/DC power, this actuator utilizes a 2-10VDC or 4-20mA proportional control signal, providing an adjustable position feedback of 2-10VDC for real-time monitoring. Engineered for seamless integration with Belimo ZoneTight zone valves, it features a pressure independent performance profile that ensures consistent flow regardless of pressure fluctuations. The snap-fit connection allows for tool-free installation, reducing labor time on the job site. With a low power consumption design and a stall-proof motor, this proportional valve actuator delivers reliable operation in demanding commercial HVAC applications where precise temperature modulation and energy efficiency are critical requirements for building automation systems.
Key Benefits:
- Compatible with Belimo CQ series valves for streamlined hydronic control.
- Features electronic stall protection to prevent motor burnouts and extend service life.
- Supports proportional control signals (2-10VDC or 4-20mA) for high-accuracy flow regulation.
- Simple snap-on installation eliminates the need for specialized tools during commissioning.
- IP40 rated enclosure designed for reliable performance in indoor environmental conditions.
Common Questions:
Can I use the Belimo CQX24-SR with a 4-20mA controller?
Yes, this actuator is compatible with 4-20mA signals when utilizing a 500? resistor or through direct configuration, allowing for flexible integration with legacy PLC and DDC systems.
What happens if the power fails during operation?
As a non-spring return actuator, the CQX24-SR will remain in its last position upon loss of power, maintaining the current flow state until power is restored and a control signal is received.
Does this actuator require manual calibration?
The unit is designed for automated stroke adaptation, ensuring the 0-100% control signal aligns accurately with the physical end-stops of the valve body.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
