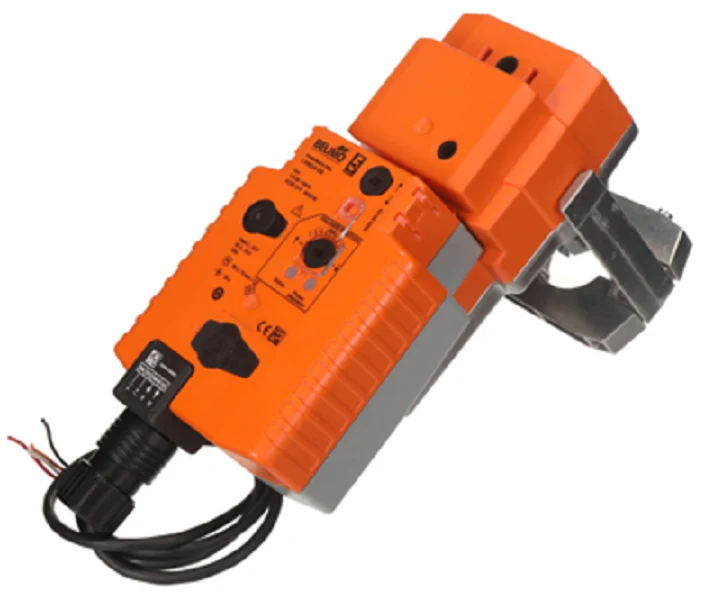

Belimo BGVL+LVKB24-SR Actuator
The Belimo BGVL+LVKB24-SR is a professional-grade retrofit valve linkage paired with a high-performance electronic fail-safe actuator, engineered specifically for Belimo globe valves. This 115 lbf (500 N) force assembly provides modulating 2-10VDC control for precise regulation of chilled water, hot water, and steam in demanding BMS (Building Management Systems) environments. The BGVL retrofit kit features a tapered bonnet and notched stem design, ensuring a secure and efficient connection to 2-way and 3-way valves ranging from 1/2" to 2".
Operating on 24V AC/DC, the LVKB24-SR actuator utilizes advanced brushless DC motor technology and maintenance-free capacitors to provide reliable fail-safe positioning in the event of a power loss. With a motor running time of 90 seconds and a fail-safe response in under 35 seconds, this linear globe valve actuator maintains system stability and safety. The unit is NEMA 2 rated and includes a 3-foot plenum cable for direct installation in air handling units and mechanical rooms.
Key Benefits
- Precise Modulating Control: Supports a 2-10VDC control signal (or 4-20mA with a 500 Ω resistor) for sensitive temperature and flow regulation.
- Electronic Fail-Safe: Integrated super-capacitors ensure the valve returns to its safety position during power outages without the bulk of mechanical springs.
- Simplified Retrofitting: The BGVL linkage is designed for easy field mounting on various Belimo globe valve bodies, reducing installation labor for contractors.
- Built-in Overload Protection: Eliminates the need for limit switches by electronically protecting the motor throughout its entire 0.6" to 0.75" stroke.
Common Questions
Is this actuator compatible with 4-20mA systems?
Yes, by adding a ZG-R01 500 Ω resistor, you can convert a standard 4-20mA signal into the 2-10VDC input required by the LVKB24-SR.
Can I change the fail-safe direction in the field?
Yes, the direction of motion for both the motor and the fail-safe function can be reversed using the integrated switches on the actuator housing.
Does this unit require a manual override?
The assembly includes a 4 mm hex crank, allowing technicians to manually position the valve for testing or emergency operation when power is unavailable.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
