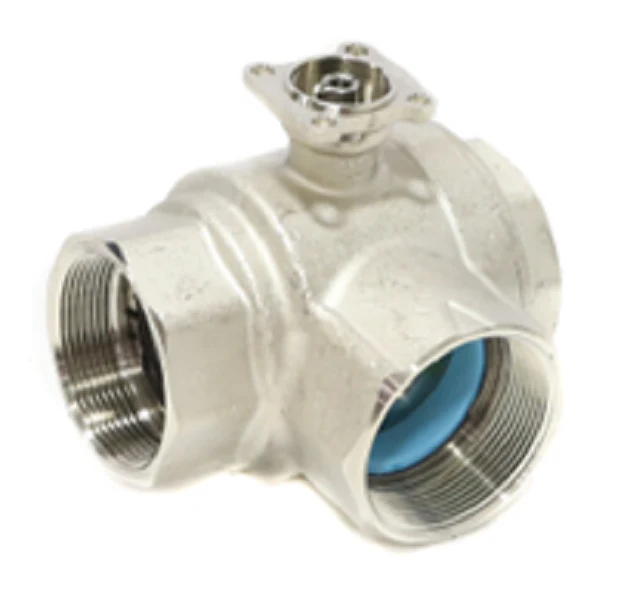

Belimo B352 Valve
The Belimo B352 is a robust 2-inch 3-way characterized control valve designed for high-performance hydronic regulation in demanding HVACR applications. Engineered with a nickel-plated forged brass body and a stainless steel ball and stem, this CCV valve is built to handle chilled or hot water systems with up to 60% glycol solution. Its 83 Cv rating ensures significant flow capacity, while the specialized internal geometry provides an equal percentage flow characteristic on the A-port and a modified flow on the B-port for constant common port volume. This npt ball valve is an essential component for air handling units, fan coil units, and VAV box re-heat coils, offering a 400 psi body pressure rating and a maximum fluid temperature of 250°F. Contractors rely on the Belimo B352 3-way valve for its maintenance-free operation and precise linear control, preventing hunting in building automation systems (BAS) and ensuring stable discharge temperatures across variable flow loops.
Key Benefits- Precise Hydronic Control: The equal percentage flow characteristic ensures stable modulation and prevents control loop hunting.
- High-Durability Construction: Features stainless steel trim and a nickel-plated brass body to resist corrosion in hot and chilled water cycles.
- Versatile Media Compatibility: Rated for temperatures up to 250°F and compatible with 60% glycol solutions for glycol-fed cooling systems.
- Bubble-Tight Shut-Off: Utilizes PTFE seats and EPDM O-rings for zero leakage on Port A, maximizing system efficiency.
- Standardized Integration: The 2" NPT female connection allows for straightforward installation with a wide range of standard Belimo actuators.
Is the Belimo B352 suitable for steam applications?
No, this valve is specifically designed for chilled or hot water and glycol solutions up to 250°F. It is not rated for steam service.
Can I use this 3-way valve for both mixing and diverting?
Yes, the Belimo B352 is engineered for both mixing and diverting applications in hydronic systems, though flow direction must follow the arrow markings on the valve body for proper characterization.
What actuators are compatible with a 2-inch B352?
This valve typically pairs with Belimo ARB, ARX, or AFRB series actuators. Always verify the required torque and control signal (e.g., 2-10VDC or floating) before assembly.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $621.98
-65%$621.98
$217.69Belimo B352 Valve
The Belimo B352 is a robust 2-inch 3-way characterized control valve designed for high-performance hydronic regulation in demanding HVACR applications. Engineered with a nickel-plated forged brass body and a stainless steel ball and stem, this CCV valve is built to handle chilled or hot water systems with up to 60% glycol solution. Its 83 Cv rating ensures significant flow capacity, while the specialized internal geometry provides an equal percentage flow characteristic on the A-port and a modified flow on the B-port for constant common port volume. This npt ball valve is an essential component for air handling units, fan coil units, and VAV box re-heat coils, offering a 400 psi body pressure rating and a maximum fluid temperature of 250°F. Contractors rely on the Belimo B352 3-way valve for its maintenance-free operation and precise linear control, preventing hunting in building automation systems (BAS) and ensuring stable discharge temperatures across variable flow loops.
Key Benefits- Precise Hydronic Control: The equal percentage flow characteristic ensures stable modulation and prevents control loop hunting.
- High-Durability Construction: Features stainless steel trim and a nickel-plated brass body to resist corrosion in hot and chilled water cycles.
- Versatile Media Compatibility: Rated for temperatures up to 250°F and compatible with 60% glycol solutions for glycol-fed cooling systems.
- Bubble-Tight Shut-Off: Utilizes PTFE seats and EPDM O-rings for zero leakage on Port A, maximizing system efficiency.
- Standardized Integration: The 2" NPT female connection allows for straightforward installation with a wide range of standard Belimo actuators.
Is the Belimo B352 suitable for steam applications?
No, this valve is specifically designed for chilled or hot water and glycol solutions up to 250°F. It is not rated for steam service.
Can I use this 3-way valve for both mixing and diverting?
Yes, the Belimo B352 is engineered for both mixing and diverting applications in hydronic systems, though flow direction must follow the arrow markings on the valve body for proper characterization.
What actuators are compatible with a 2-inch B352?
This valve typically pairs with Belimo ARB, ARX, or AFRB series actuators. Always verify the required torque and control signal (e.g., 2-10VDC or floating) before assembly.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
