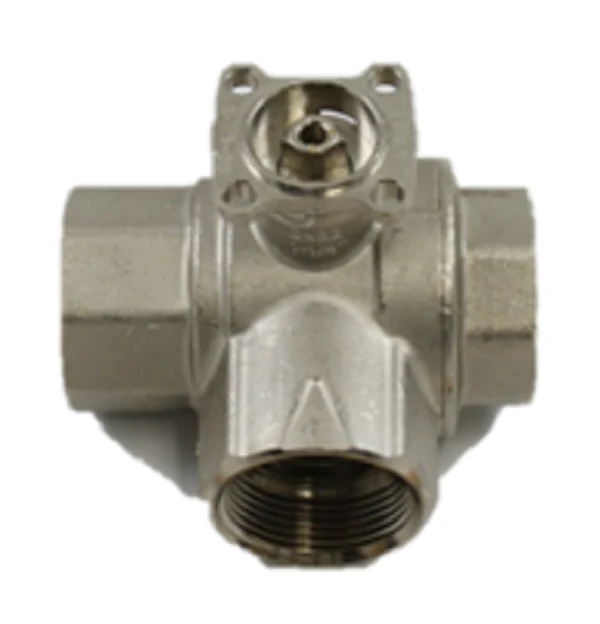

Belimo B332L Valve
The Belimo B332L Valve is a high-performance 3-way ball valve designed for demanding hydronic applications, featuring a 1-1/4 inch NPT female connection and a robust 34 Cv flow coefficient. Engineered with a nickel-plated brass body and a chrome-plated brass ball, this valve ensures reliable modified linear flow for effective diverting or change-over control. It is specifically built for chilled or hot water systems, supporting media temperatures from 0°F to 250°F and up to 60% glycol solution concentration. With a 400 psi body pressure rating and a 200 psi close-off pressure, the B332L provides a zero-leakage solution (Port A to AB) for HVAC control systems. This characterised control valve is maintenance-free and serves as a critical component in Air Handling Units (AHUs) and Fan Coil Units (FCUs) where precise thermal management is required. Contractors can pair this valve with non-fail safe (NR) or spring return (AFR) actuators to meet specific site requirements.
Key Benefits
- Superior Durability: Forged nickel-plated brass body and chrome-plated ball resist scaling and corrosion in closed-loop systems.
- Precise Flow Control: The modified linear flow characteristic ensures stable temperature regulation in mixing or diverting setups.
- High Glycol Tolerance: Safely handles up to 60% glycol, making it ideal for freeze-protected hydronic loops.
- Zero Leakage Performance: Port A to AB features a 0% leakage rate, maximizing energy efficiency and system pressure stability.
- Broad Compatibility: Standard NPT internal thread and 1.25 inch sizing allow for seamless integration into existing piping manifolds.
Common Questions
Can the B332L be used for steam applications?
No, the B332L is designed exclusively for water and glycol-based hydronic systems and is not rated for steam service.
What is the difference between a B332L and a standard CCV?
The B332L is specifically a diverting valve with a modified linear flow profile, whereas standard CCV 3-way valves from Belimo are typically used for mixing and may feature equal percentage flow characteristics.
Which actuators are compatible with this valve?
This 1-1/4" valve is compatible with Belimo NR and AFR series actuators. Always verify the required torque and fail-safe position (Normally Open or Normally Closed) before selecting your actuator.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $391.02
-65%$391.02
$136.86Belimo B332L Valve
