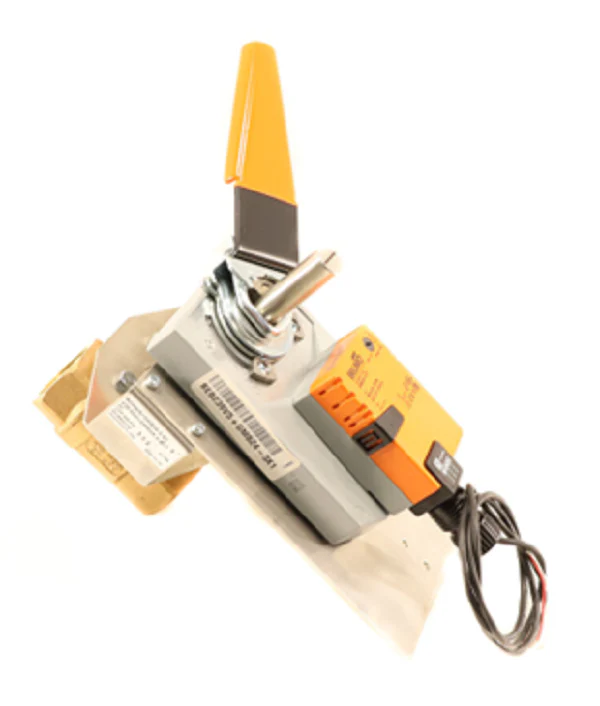

Belimo B239VS+GMB24-3X1 Valve Assembly
The Belimo B239VS+GMB24-3-X1 is a high-performance 2-way valve assembly engineered for demanding HVAC and steam applications. This 1 1/2 inch NPT ball valve features a robust brass body and 316 stainless steel trim, ensuring longevity and resistance to corrosion in systems utilizing chilled water, hot water, or up to 60% glycol solutions. With a high flow coefficient of Cv 84 and a 600 psi body pressure rating, this assembly is built for high-capacity flow control and reliable close-off performance.
The assembly is powered by the GMB24-3-X1 non-spring return actuator, delivering 360 in-lb of torque for precise positioning. Designed for on/off or floating control, the actuator operates on 24Vac/Vdc power and features a 150-second runtime. The NEMA 2 rated enclosure and 3-foot plenum-rated cable simplify installation in air handlers, unit ventilators, and VAV reheat coils. This field-proven Belimo valve actuator combination provides the technical reliability required by contractors for critical variable flow hydronic systems and steam applications up to 35 psi.
Key Benefits- Maximum Durability: Features a stainless steel ball and stem to prevent scale buildup and extend service life in steam and hydronic loops.
- Precision Flow Control: The Cv 84 rating and modified equal percentage flow characteristic provide accurate temperature regulation.
- High Torque Performance: The 360 in-lb actuator ensure reliable movement even in high-pressure 600 psi WOG applications.
- Flexible Installation: Universal 24V AC/DC power compatibility and an 18 GA plenum-rated cable streamline field wiring.
What is the maximum steam pressure for the B239VS?
This valve is rated for low-pressure steam applications up to 35 psi.
Can the GMB24-3-X1 actuator be manually overridden?
Yes, the actuator includes an external manual override push button for manual positioning during commissioning or power loss.
Is this valve suitable for glycol systems?
Yes, the assembly is specifically designed to handle up to 60% glycol solutions for heating and cooling coils.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
