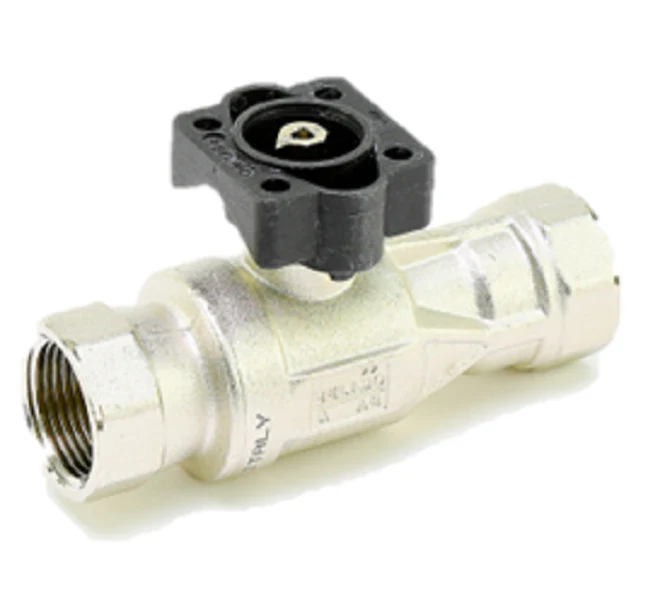

Belimo B225HT1160 Valve
The Belimo B225HT1160 is a rugged 1-inch, 2-way High Temperature characterizable control valve designed for demanding hydronic and low-pressure steam applications. Featuring a nickel-plated brass body and a 316 stainless steel ball and stem, this NPT ball valve is engineered to withstand high-temperature hot water up to 266°F and steam inlet pressures up to 15 psi. Utilizing a TEFZEL flow characterizing disc, the unit maintains an equal percentage flow characteristic, ensuring stable linear thermal output and precise modulation in AHUs and heat exchangers. With an 11.6 Cv rating and a 600 psi body pressure rating, it provides reliable bubble-tight shut-off and can handle up to 60% glycol solutions, making it a versatile choice for heavy-duty HVAC automation and mechanical room retrofits.
Technical Benefits- High-Temperature Durability: Rated for media temperatures up to 266°F, making it suitable for low-pressure steam and demanding hydronic loops.
- Corrosion Resistance: The 316 stainless steel ball and stem assembly prevents pitting and mineral buildup in harsh fluid environments.
- Precise Flow Control: Equipped with an equal percentage disc to eliminate hunting and ensure consistent heat transfer regardless of pressure fluctuations.
- Reduced Actuator Wear: Optimized low-torque design extends the service life of paired Belimo actuators like the LR or AR series.
- High Close-Off Pressure: Engineered to provide reliable shut-off in high-head pump applications without leakage.
What is the maximum steam pressure rating for the B225HT1160?
This valve is rated for a maximum steam inlet pressure of 15 psi, perfect for low-pressure steam applications.
Can this valve be field-repaired or serviced?
The B225HT1160 features a maintenance-free design; however, the actuator can be easily replaced or swapped without breaking the piping seal.
Is this valve compatible with existing Belimo actuators?
Yes, it is designed for use with non-spring return and spring return actuators used in standard 1-inch valve configurations.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
