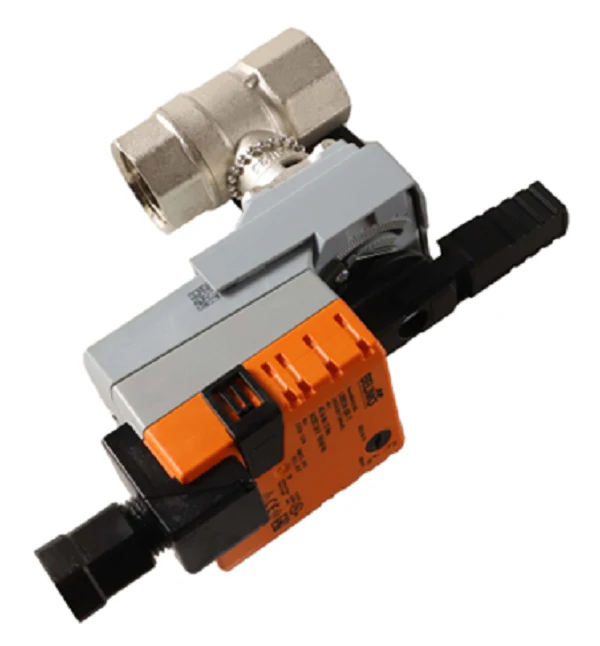

Belimo B225+LRB24-SR-T Valve Assembly
The Belimo B225+LRB24-SR-T is a professional-grade 1-inch 2-way characterized control valve (CCV) and actuator assembly designed for precise hydraulic control in closed-loop HVAC systems. This assembly features a 30 Cv flow coefficient and a stainless steel ball and stem to resist scaling and corrosion in demanding hydronic applications. The LRB24-SR-T non-spring return actuator provides 45 in-lb of torque, operating on a standard 24V AC/DC power supply and accepting a 2-10 VDC proportional control signal. Known for its zero-percent leakage rating, the B225 utilizes a specialized TEFZEL characterized disc to provide equal-percentage flow characteristics, stabilizing temperature control and reducing pump energy consumption. Integrated NPT female connections allow for straightforward mechanical installation, while the terminal strip on the actuator simplifies field wiring for contractors. This modulating valve assembly is ideal for air handling units and heat exchangers requiring high shut-off pressure performance and long-term reliability without the maintenance overhead of traditional globe valves.
- Reduced Pumping Costs: The equal-percentage flow characteristic prevents hunting and optimizes heat transfer efficiency.
- Zero Leakage: Tight shut-off prevents ghost energy consumption in terminal units.
- Corrosion Resistance: Stainless steel trim ensures longevity in varying water chemistry conditions.
- Easy Commissioning: The 2-10 VDC feedback signal allows for remote position monitoring via the BAS.
Common Questions
What is the maximum fluid temperature for this assembly?
The B225 valve body is typically rated for chilled or hot water applications with a fluid temperature range of 0°F to 250°F (-18°C to 120°C).
Can this actuator be used in a fail-safe application?
No, the LRB24-SR-T is a non-spring return actuator. It will maintain its last position upon loss of power.
Is this valve suitable for steam applications?
No, Belimo CCV units like the B225 are specifically engineered for water and glycol solutions and are not rated for steam service.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
